NDS 10" Round Grate

$19.02
In stock
Only %1 left
SKU
NDS 1040

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 10" Round Grate

NDS round grates provide long-lasting protection against fading and cracking caused by the harsh sun. Unlike other grates, NDS grates are chemical-resistant and rustproof, ensuring they remain in excellent condition even in the toughest outdoor environments. NDS 10" Round Grates are maintenance-free and lightweight, making them easy to install and ideal for outdoor spaces that receive light foot traffic. NDS 10" Round Grated is optimized to collect and direct water away from driveways, patios, and other outdoor areas. And with compatibility with a wide range of drainage systems, including Spee-D® Basin, 8” Sewer and Drain Fittings, 8” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, and Class 100 Pipe, NDS 10" Round Grates is convenient a choice for any drainage project

Key Insights

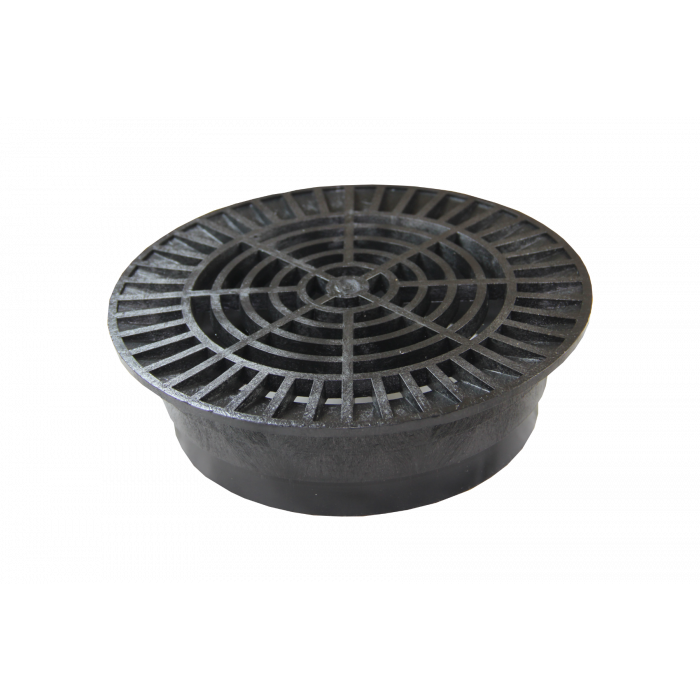

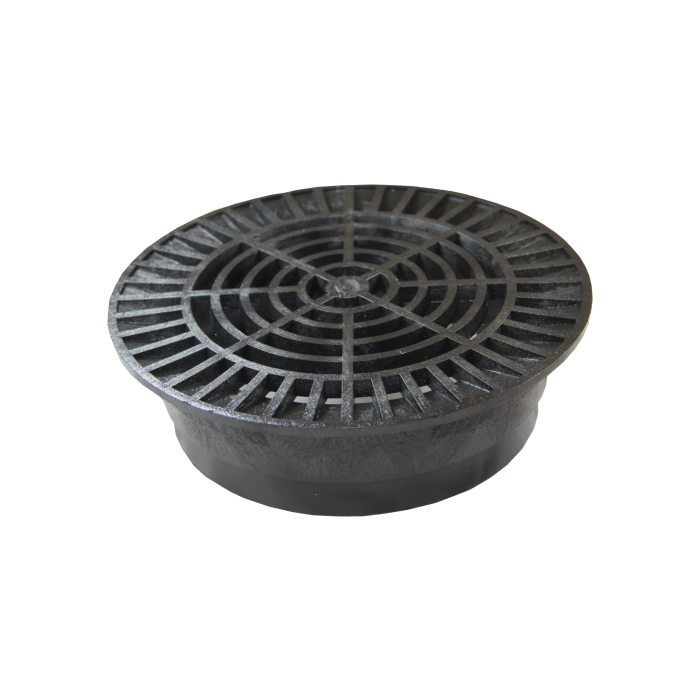

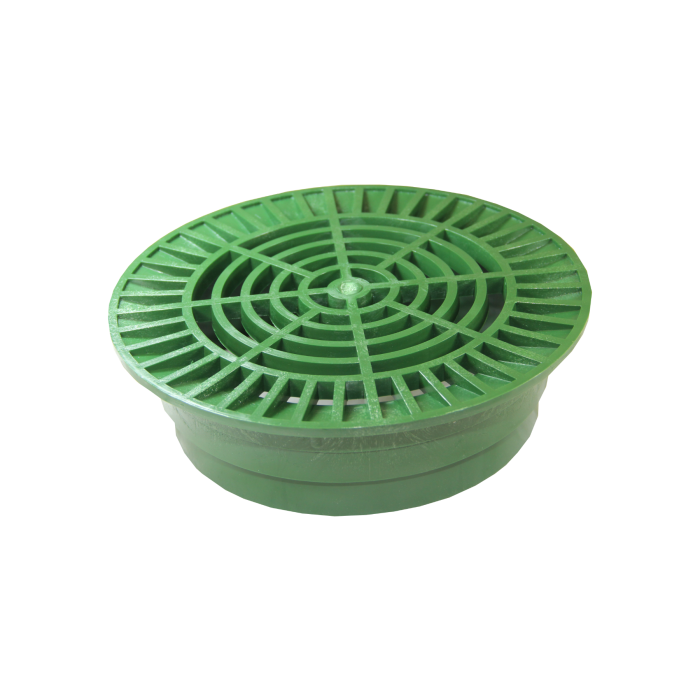

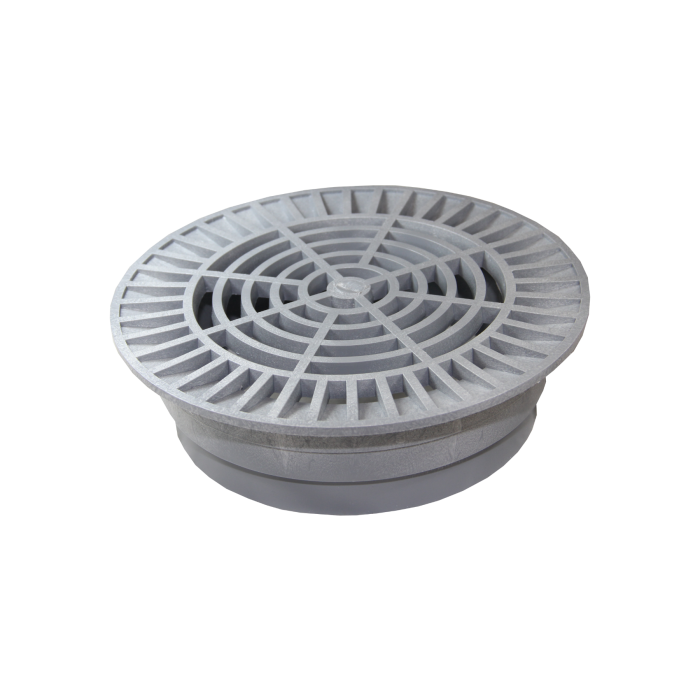

  • Color: Gray (NDS #1060), Green (NDS #1050), Black (NDS #1040)

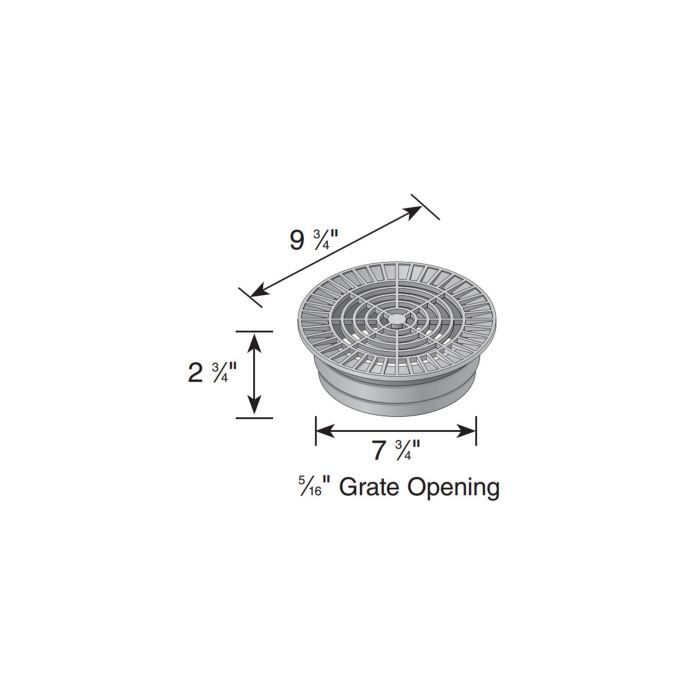

  • Dimensions: 9-3/4" LENGTH x 9-3/4" WIDTH x 2-3/4" HEIGHT
  • ADA Compliant
  • Load Recommendation: Class A (01-61 PSI / 3,372 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)
  • Use with NDS Spee-D® Basins, 8” Sewer and Drain Fittings, 8” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D-2729, Class 100 Pipe
  • Grate Openings: 21.57" sq. open space
  • PVC glue can be used to bond all components together
  • Grates can be cut
  • Will accommodate 65.99 gallons per minute with 1/2” of head
  • Suitable for pedestrian traffic when properly installed
  • Used for capturing and redirecting excess water to safe locations

Shop our entire line of Round Grates Products

Additional Information

NDS 10" Round Grate Technical Specifications
NDS Channel Grates Flow Capacities Table
Principles Of Exterior NDS Drainage

Product Installation Instructions

NDS Round Grates With Sewer And Drain Elbow Installation Guide
NDS Round Grates With Sewer And Drain Elbow (Corrugated) Installation Guide
NDS Round Grates With Sanitary Sewer And Drain Tee Installation Guide
NDS Round Grates With Sanitary Sewer And Drain Tee (Corrugated) Installation Guide
NDS Round Grates With Corrugated Tee Installation Guide

Technical Product Drawings (DWG)

NDS Round Grates With Sewer And Drain Elbow Installation Guide
NDS Round Grates With Sewer And Drain Elbow (Corrugated) Installation Guide
NDS Round Grates With Sanitary Sewer And Drain Tee Installation Guide
NDS Round Grates With Sanitary Sewer And Drain Tee (Corrugated) Installation Guide
NDS Round Grates With Corrugated Tee Installation Guide
