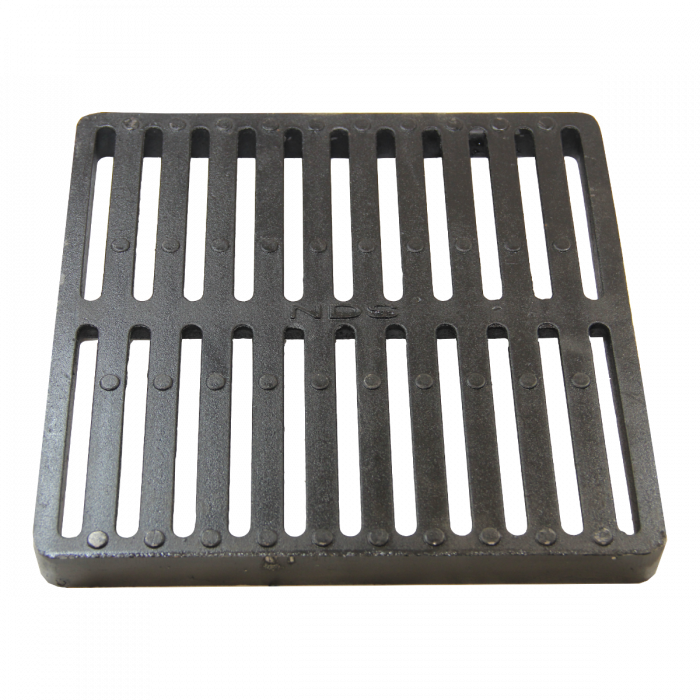

NDS 12" Catch Basin Grate - Cast Iron

Product Details: NDS 12" Catch Basin Grate - Cast Iron

The NDS 12" Catch Basin Grate - Cast Iron is a vital part of the NDS drainage system. This product is designed to effectively manage excess surface water from lawns, landscapes, residential driveways, and garages. Made to withstand regular use in both landscaping and hardscaping projects, this kit is durable and built to last. The NDS 12" Catch Basin Grate - Cast Iron helps prevent the clogging of pipelines by collecting debris and other particles, ensuring the proper flow of water. Grates are customizable, with a variety of patterns and colors to choose from, allowing for seamless integration into your surroundings. Whether you're looking to manage water buildup in common areas or divert water away from structures, erosion-prone landscapes, or areas with poor drainage, the NDS 12" Catch Basin Grate - Cast Iron has you covered.

Key Insights

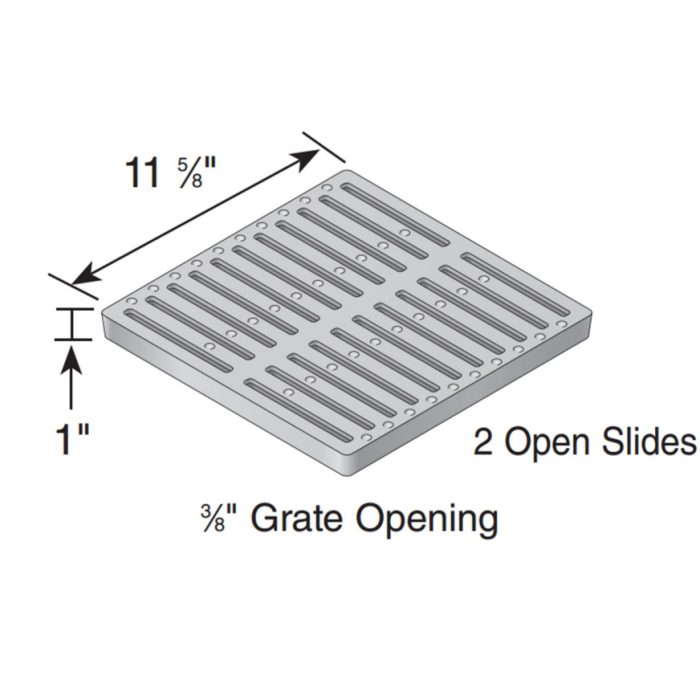

• Dimensions: 11-5/8" LENGTH x 11-5/8" WIDTH x 1" HEIGHT
• Grate Openings: 37.2" sq. open space
• Will accommodate 113.80 gallons per minute with 1/2" of head
• ADA Compliant
• Load Recommendation: Class C (176-325 PSI / 56,200 lbs per foot)
• Material: Cast Iron
• H-20 Rated
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Suitable for light vehicular traffic when properly installed
• Fits Use with NDS 12” catch basin series, NDS #1225 Sump box, and NDS #1219 Backwater Valve Box
