NDS 12" Catch Basin Kit - Green Grate

Product Details: NDS 12" Catch Basin Kit (Green Grate)

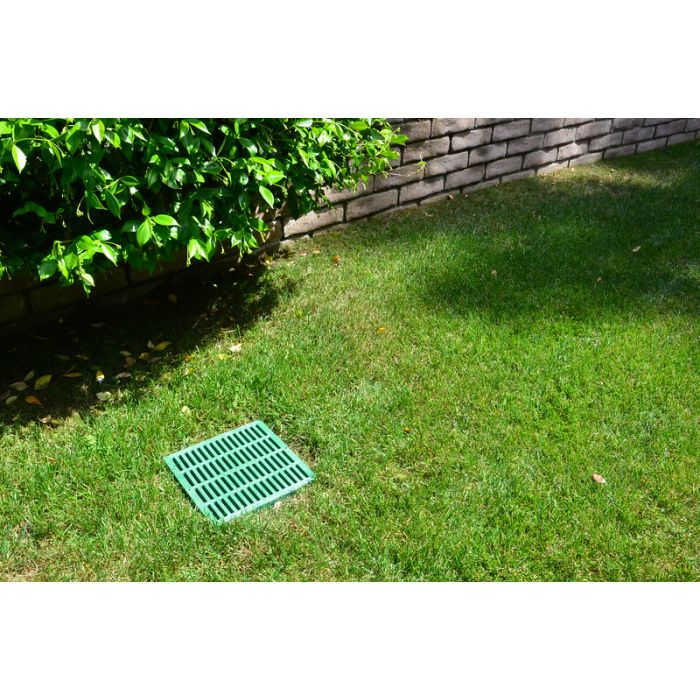

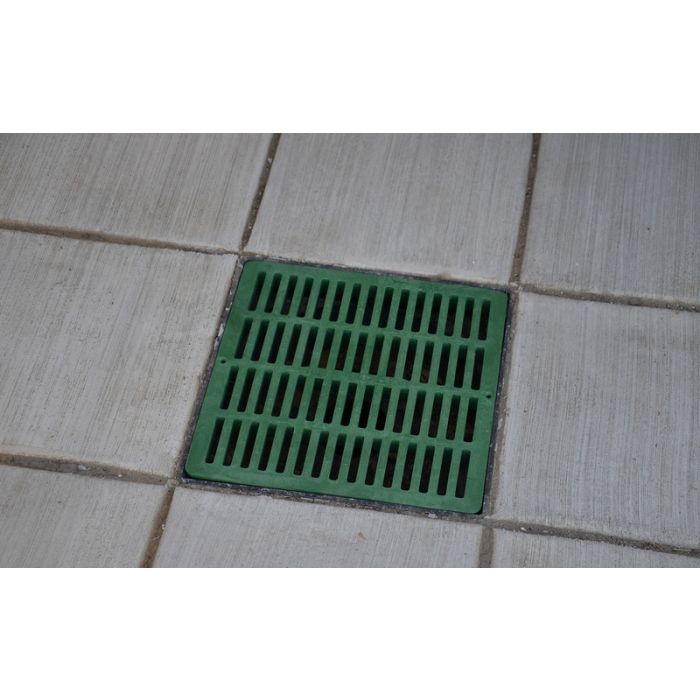

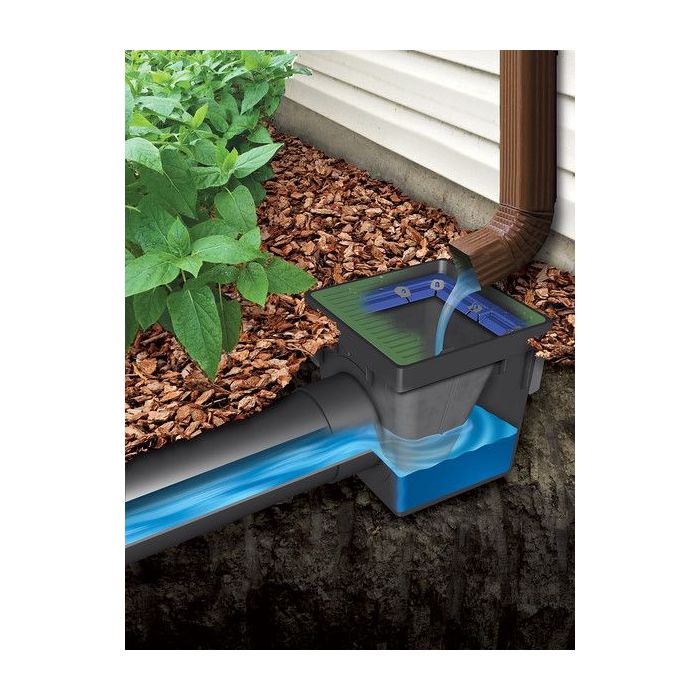

The NDS 12" Catch Basin Kit (Green Grate) is a vital part of the NDS drainage system. This product is designed to effectively manage excess surface water from lawns, landscapes, residential driveways, and garages. Made to withstand regular use in both landscaping and hardscaping projects, this kit is durable and built to last. The NDS 12" Catch Basin Kit (Green Grate) helps prevent the clogging of pipelines by collecting debris and other particles, ensuring the proper flow of water. Grates are customizable, with a variety of patterns and colors to choose from, allowing for seamless integration into your surroundings. Whether you're looking to manage water buildup in common areas or divert water away from structures, erosion-prone landscapes, or areas with poor drainage, the NDS 12" Catch Basin Kit (Green Grate) has you covered. Each kit includes ONE 2-Hole NDS Catch Basin (#1200), a Green HDPE Catch Basin Grate (#1212), a Universal Adapter Plug (#1206), and two Universal Outlets in 3" & 4" (#1243) for your convenience. With everything you need in one package, the 12" Catch Basin Kit (Greet Grate) is the ultimate solution for managing and controlling surface water in your projects.

Key Insights

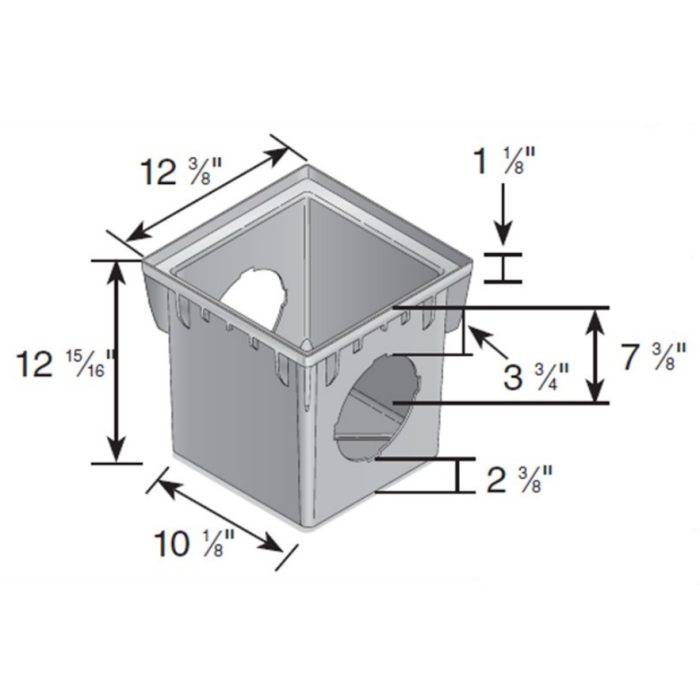

• Dimensions: 12-3/8" LENGTH x 12-3/8" WIDTH x 12-15/16" HEIGHT
• ADA Compliant
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)

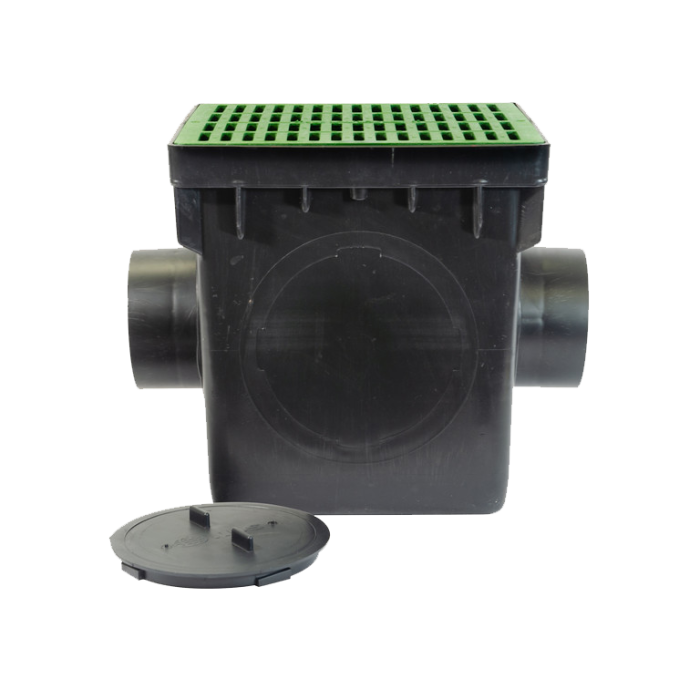

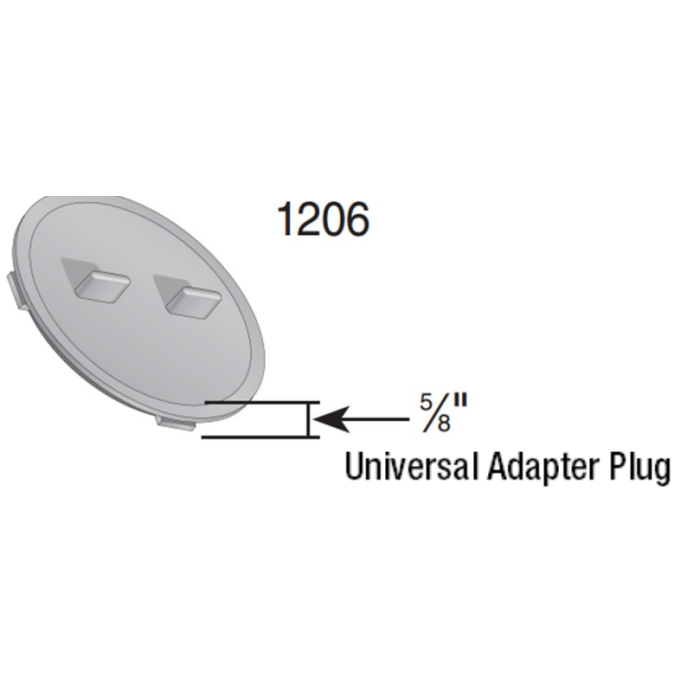

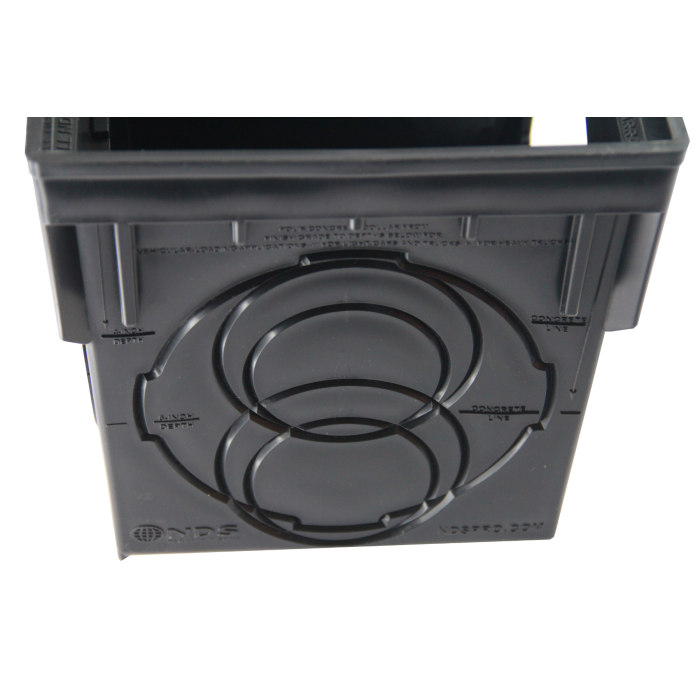

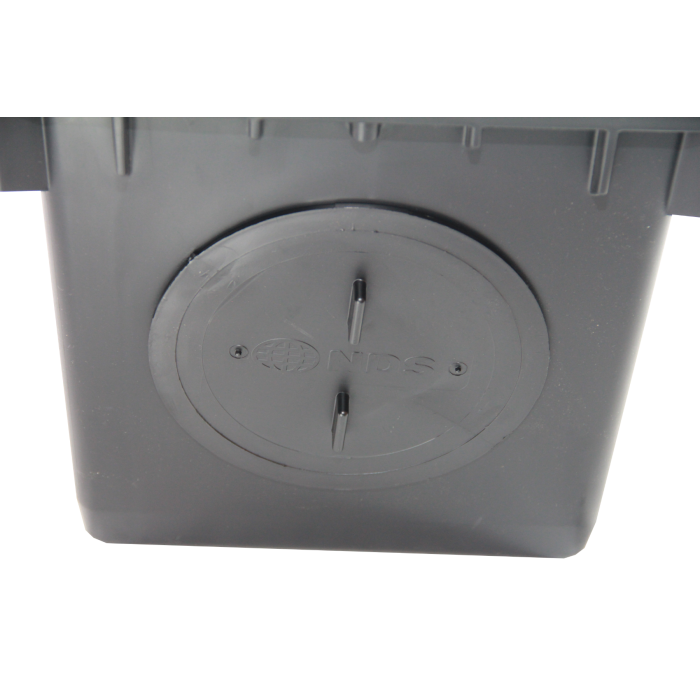

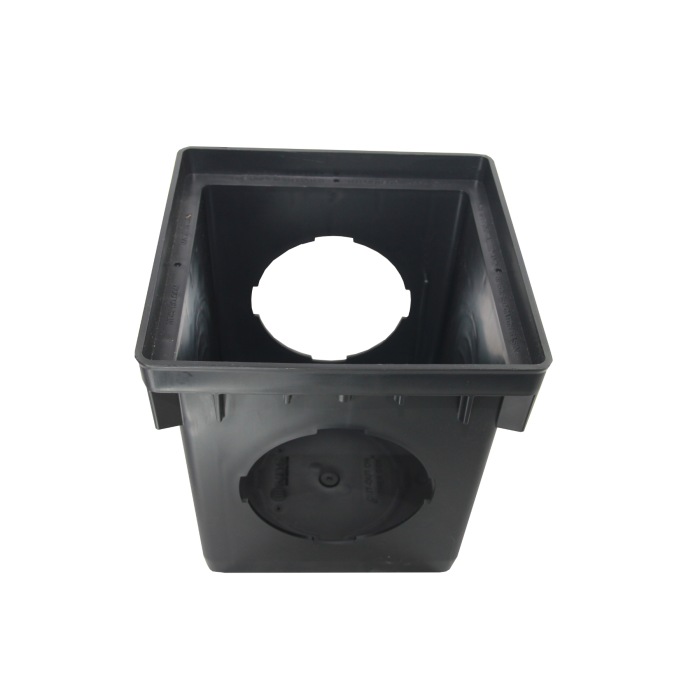

• Kit includes ONE 2-Hole NDS Catch Basin (#1200), a Green HDPE Catch Basin Grate (#1212), a Universal Adapter Plug (#1206), and two Universal Outlets in 3" & 4" (#1243)

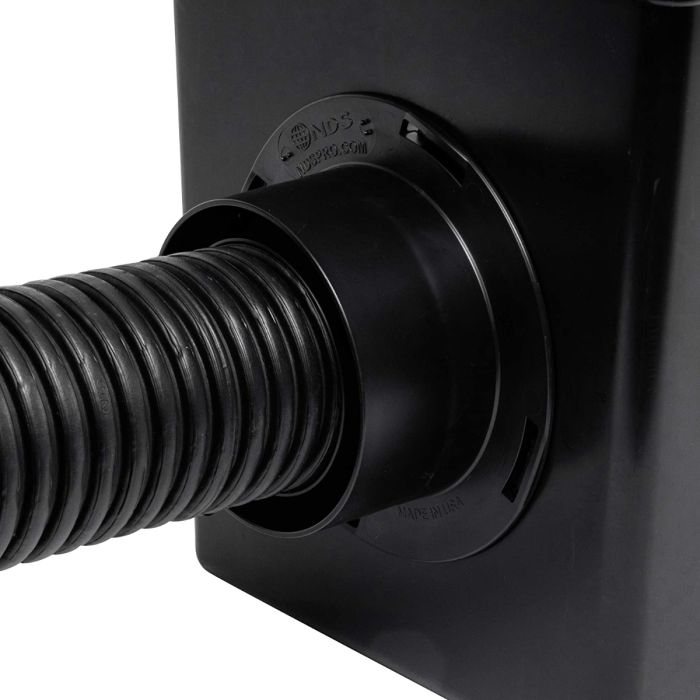

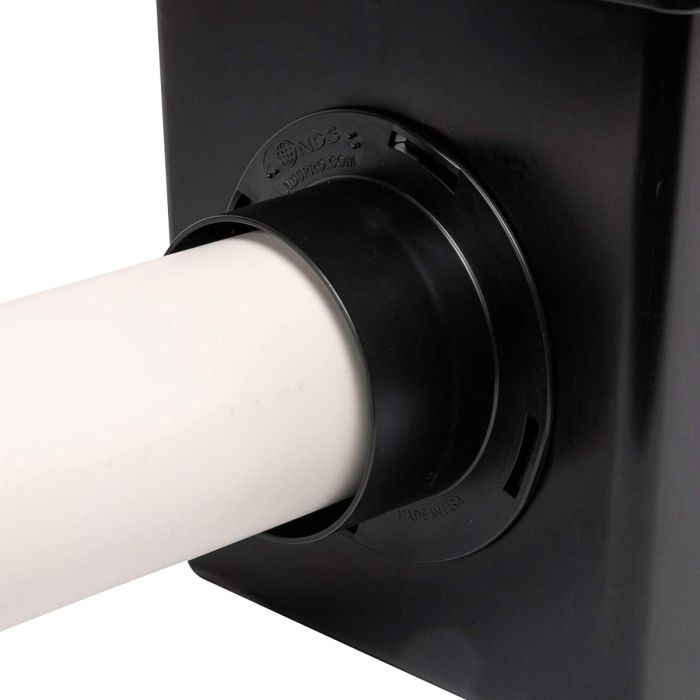

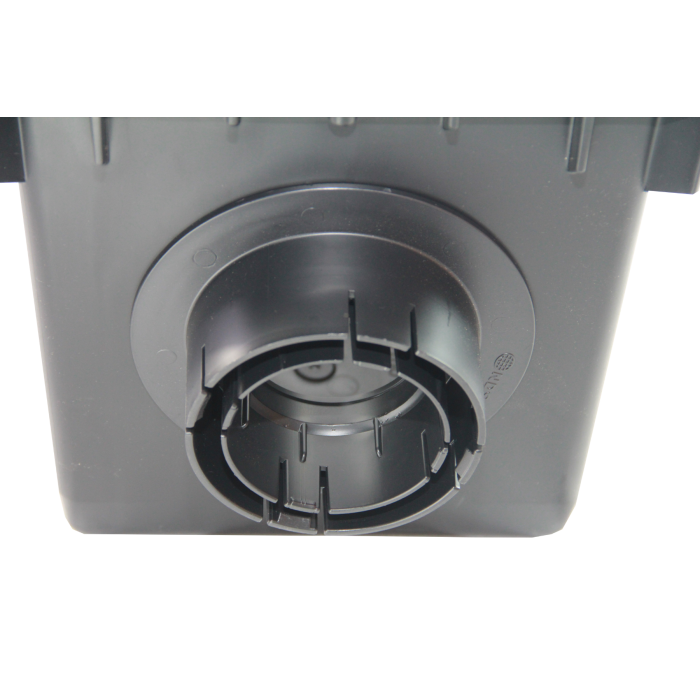

• Universal Outlet fits 3" & 4" Sewer and Drain Pipe, 3" & 4" Corrugated Pipe, 3" & 4" Triple wall Pipe, 4" PVC Schedule 40 Pipe
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Suitable for light vehicular traffic when properly installed

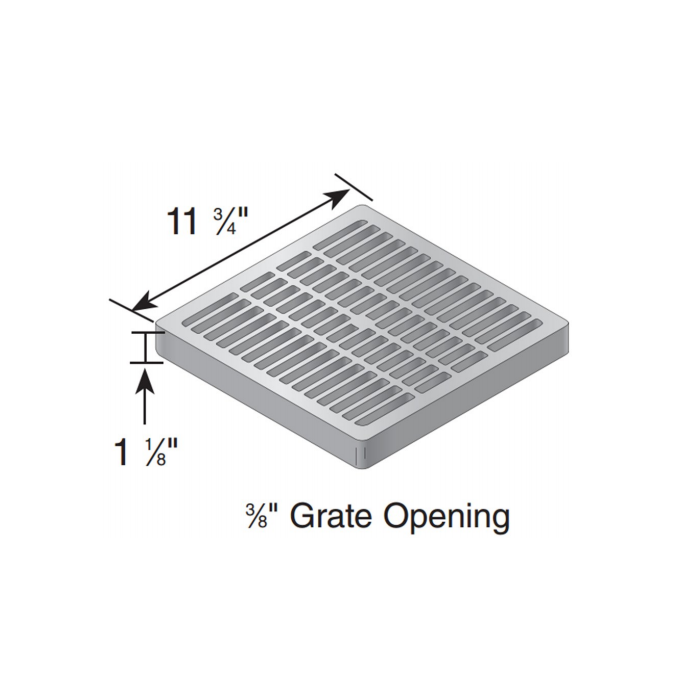

• Grate Openings: 50.76" sq. open space

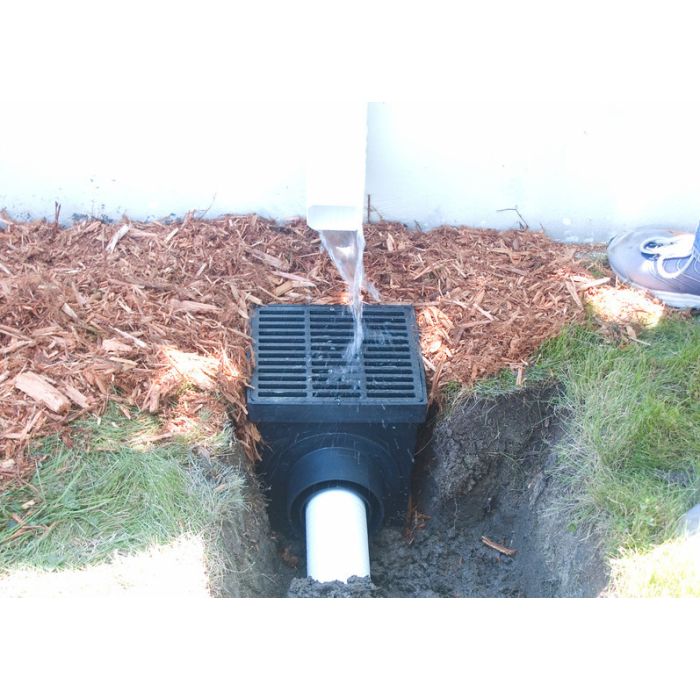

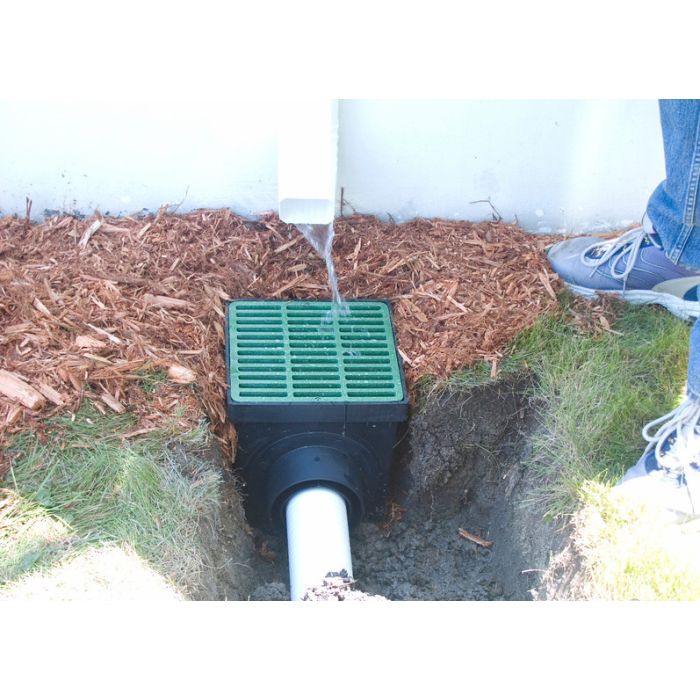

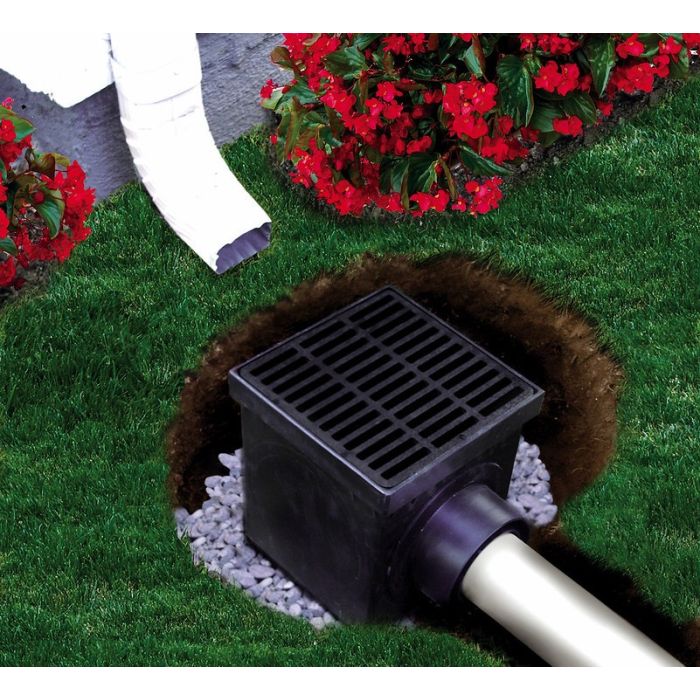

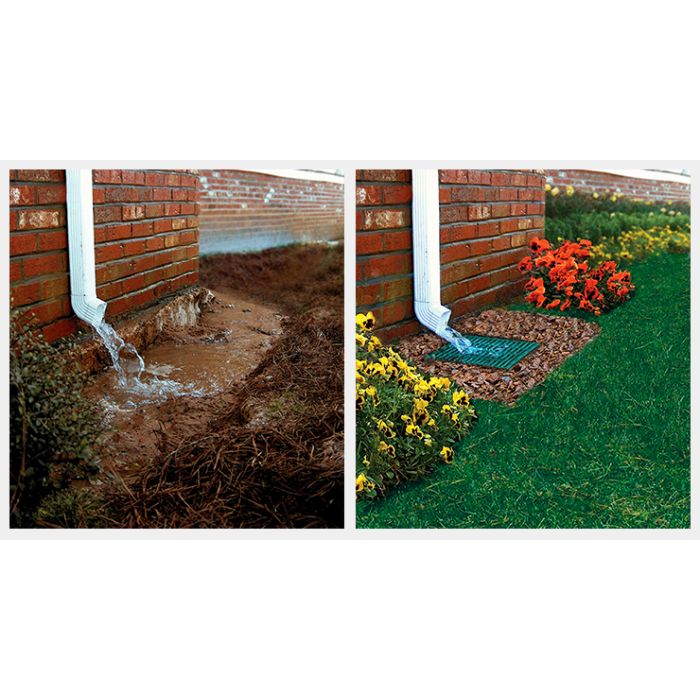

• Used for capturing and redirecting excess water to safe locations
• Will accommodate: 155.28 gallons per minute with 1/2” of head
