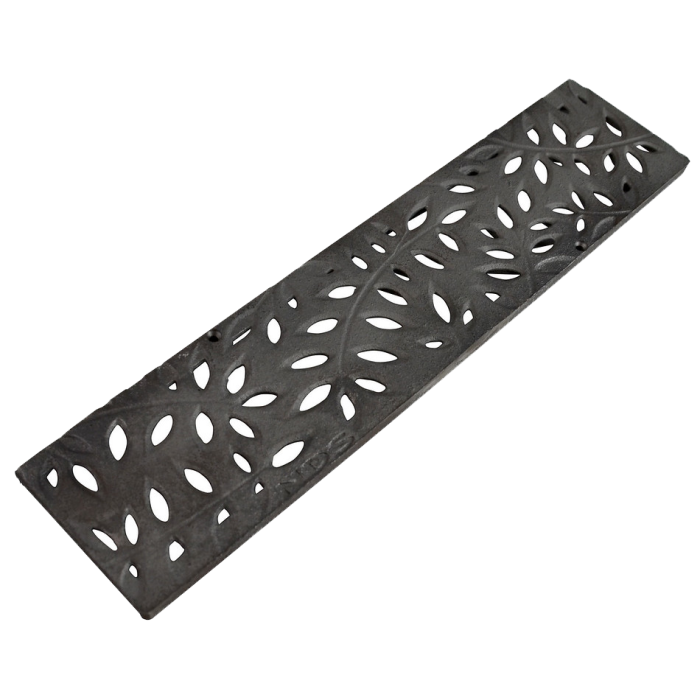

NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical)
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical)
NDS 12" Mini Channel Grate - Cast Iron (Decorative Botanical) grates are a crucial part of the NDS Mini Channel drainage system. The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.
Key Insights
- Use With NDS Mini Channel Drain (#500)
- 1/4" x 5/16" Grate Opening
- Dimensions: 12" LENGTH x 2.74" WIDTH
- Will accommodate 15.08 gallons per minute per foot with 1/2” of head
- ADA Compliant
- Channel Grates can be screwed to the channel using brass Screws, Phillips Head #4 x 5/8” screws (4 per grate, screws included)
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- Material: Cast Iron
