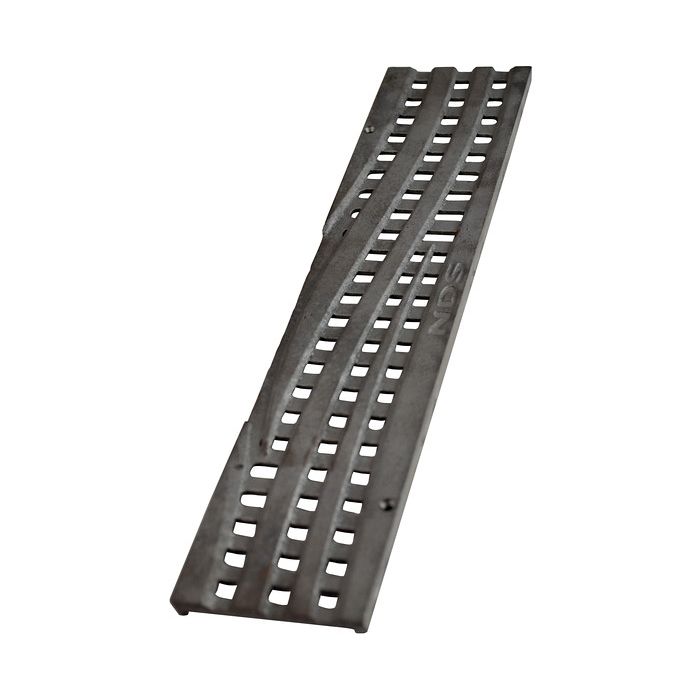

NDS 12" Mini Channel Grate - Cast Iron (Decorative Wave)

Product Details: NDS 12" Mini Channel Grate - Cast Iron (Decorative Wave)

NDS 12" Mini Channel Grate - Cast Iron (Decorative Wave) grates are a crucial part of the NDS Mini Channel drainage system. The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.

Key Insights

• Use With NDS Mini Channel Drain (#500)
• Dimensions: 12" LENGTH x 2.74" WIDTH
• Will accommodate 15.08 gallons per minute per foot with 1/2” of head
• ADA Compliant
• Channel Grates can be screwed to the channel using Screws, Phillips Head #4 x 5/8” screws (4 per grate)
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Material: Cast Iron
