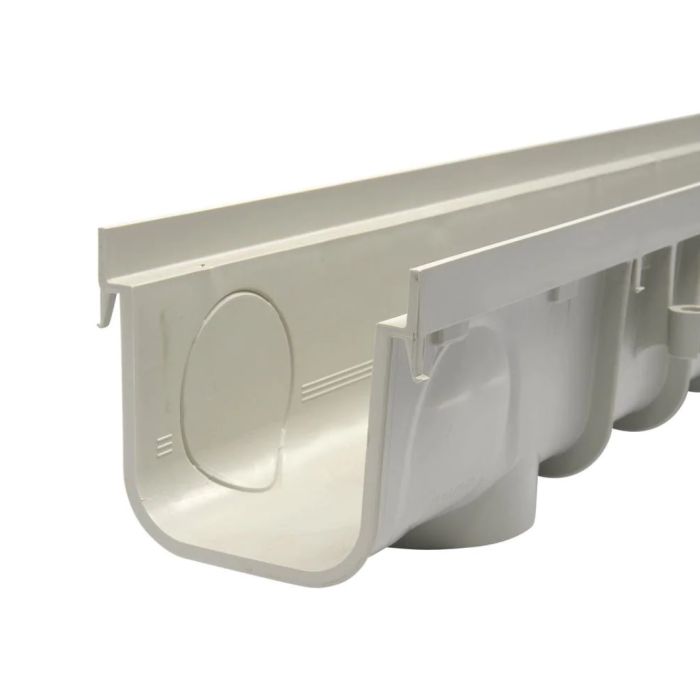

NDS 5" Pro Series Channel Drain

Product Details: NDS 5" Pro Series Channel Drain

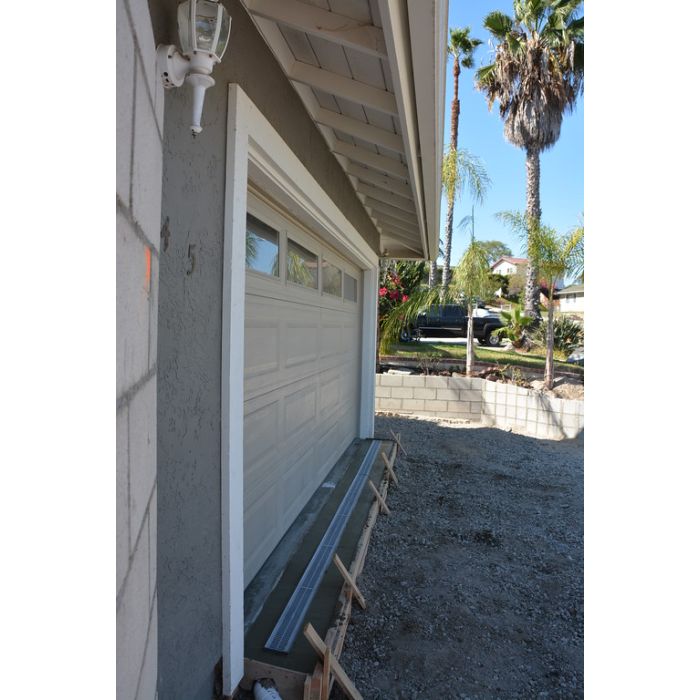

The NDS 5" Pro Series Channel Drain is the ideal solution for all your drainage needs. The 5" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain Kit is the perfect solution for all your drainage needs.

Key Insights

• Compliant with the Americans with Disabilities Act (ADA) standards
• Material: UV Protected High-Density Polyethylene (HDPE)

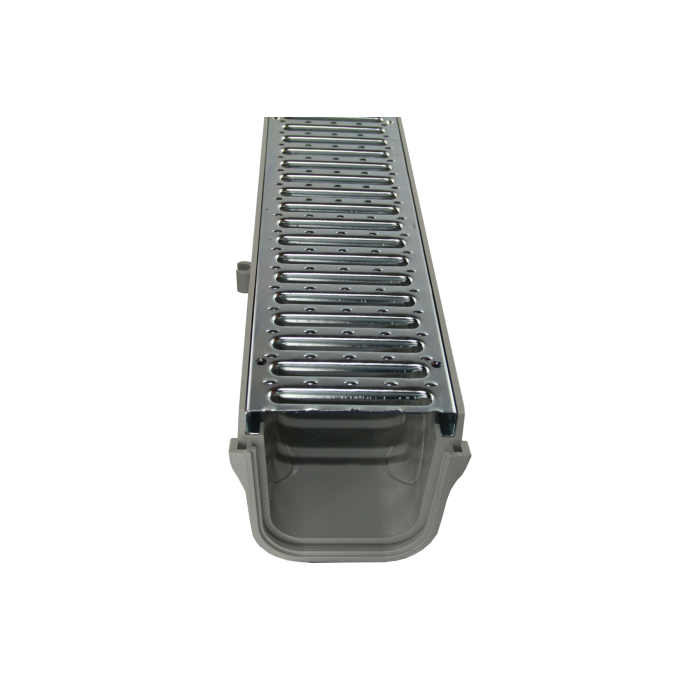

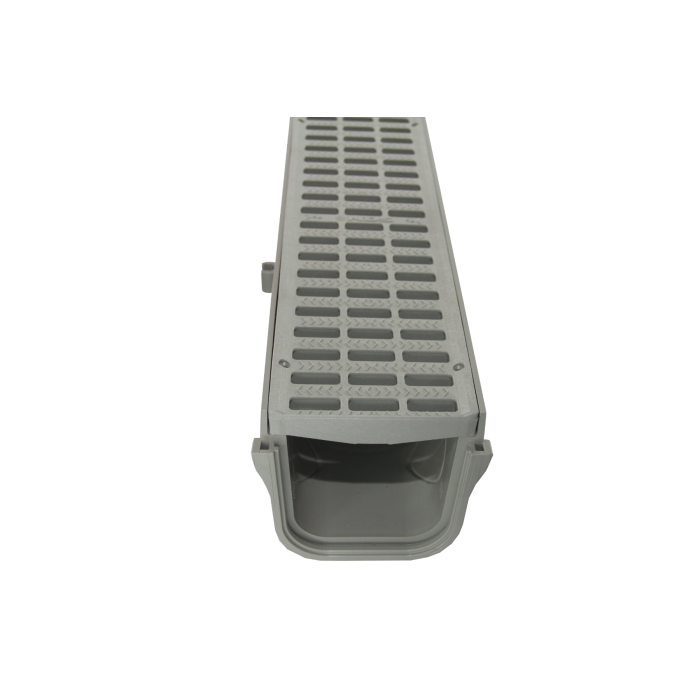

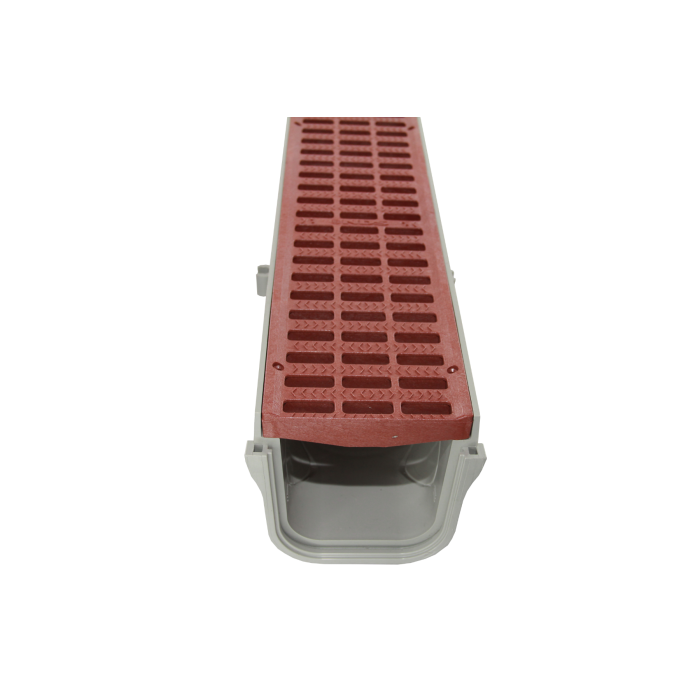

• Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per grate, screws sold separately)

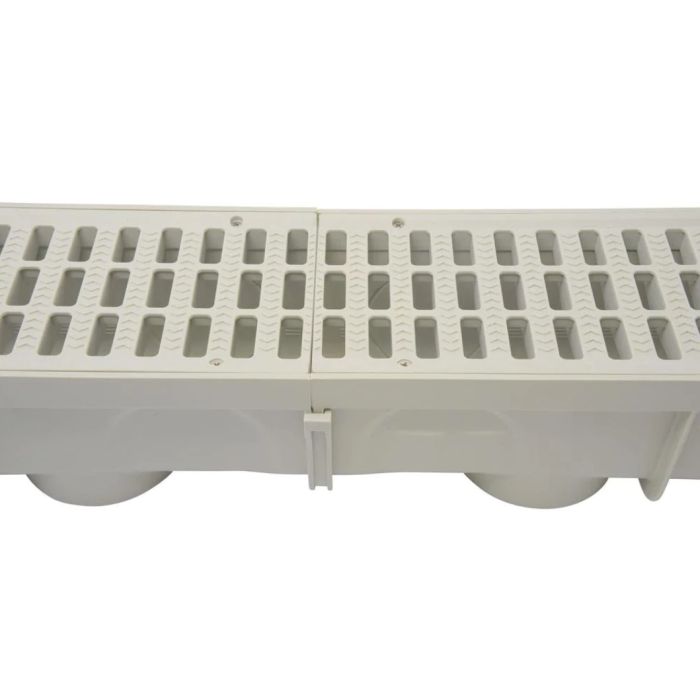

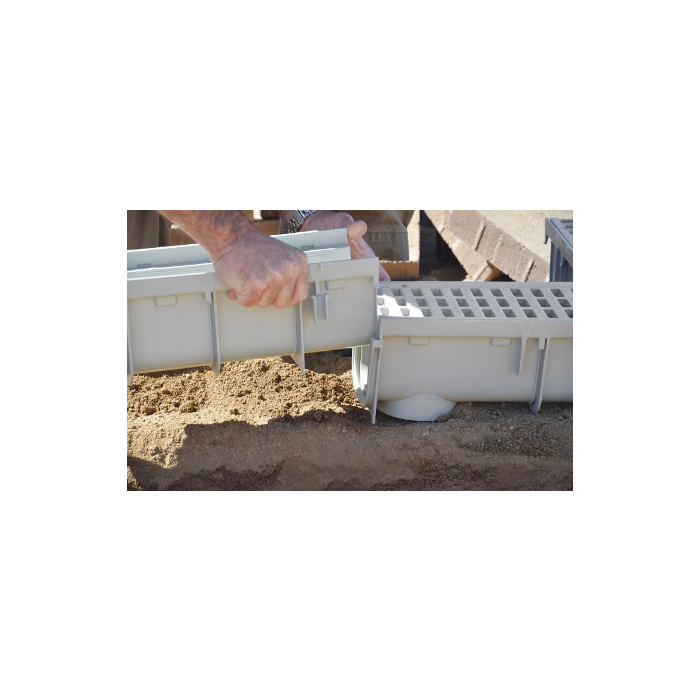

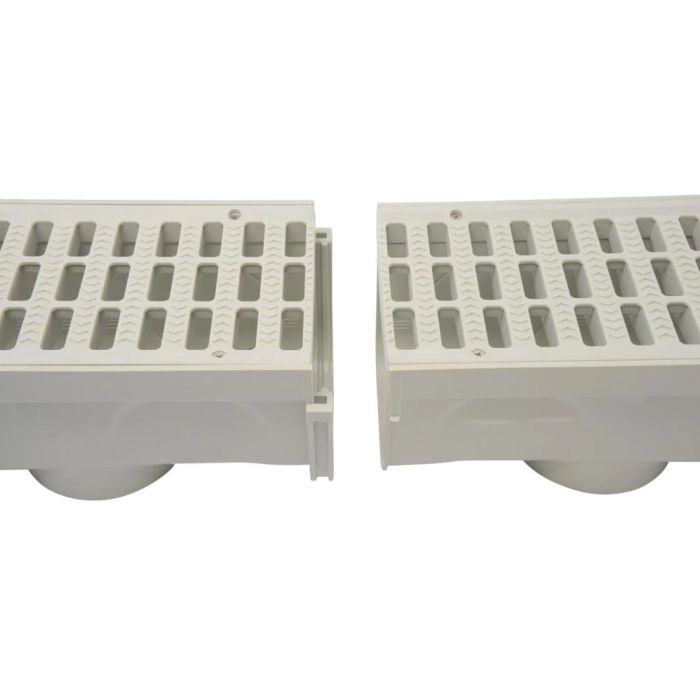

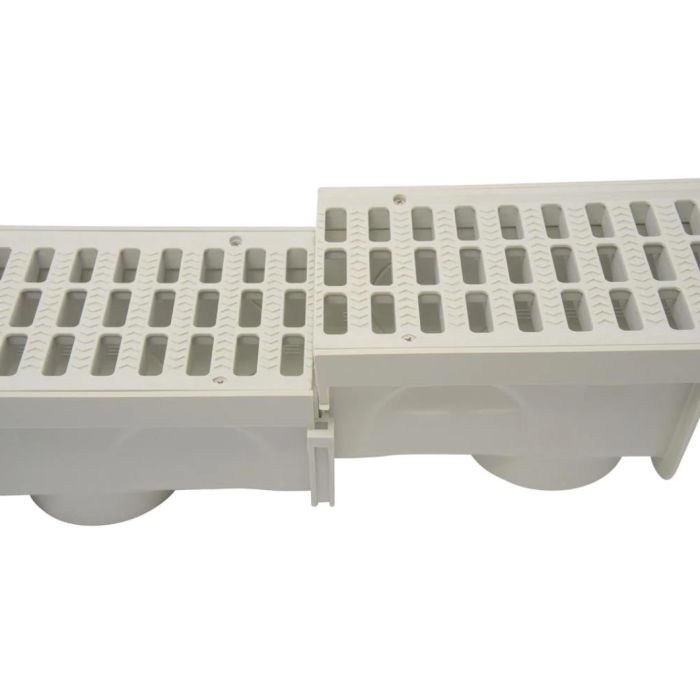

• Interlocking channel design for a secure, tight fit

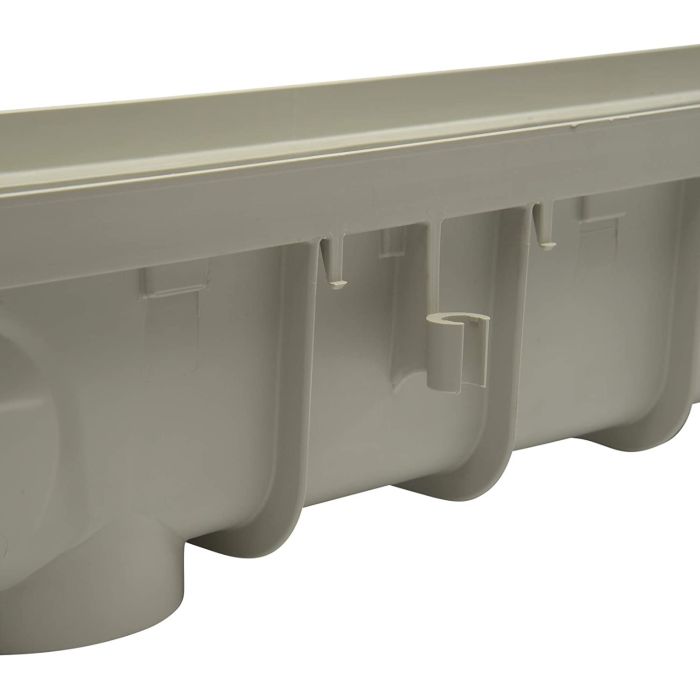

• Includes rebar tie clips for secure fit with #4 rebar

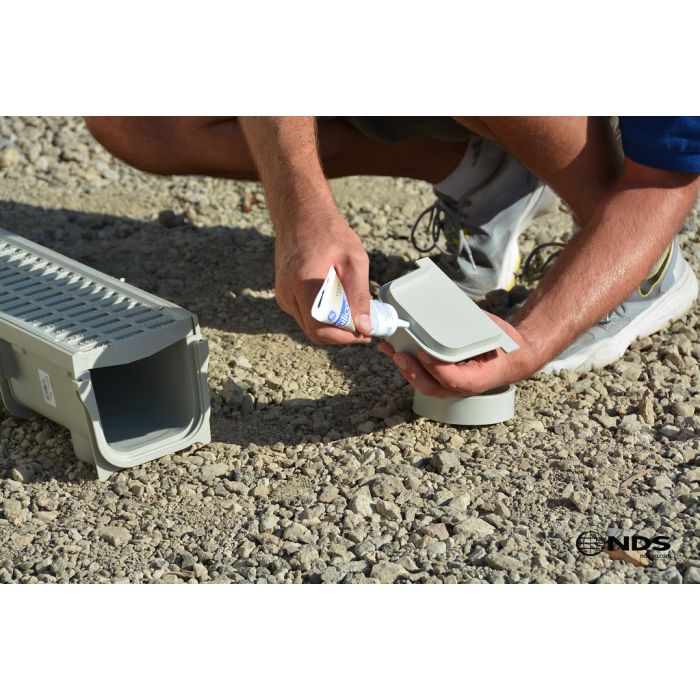

• End outlet fits 3" Sewer Drain Pipe and 4" Sewer & Drain Fittings

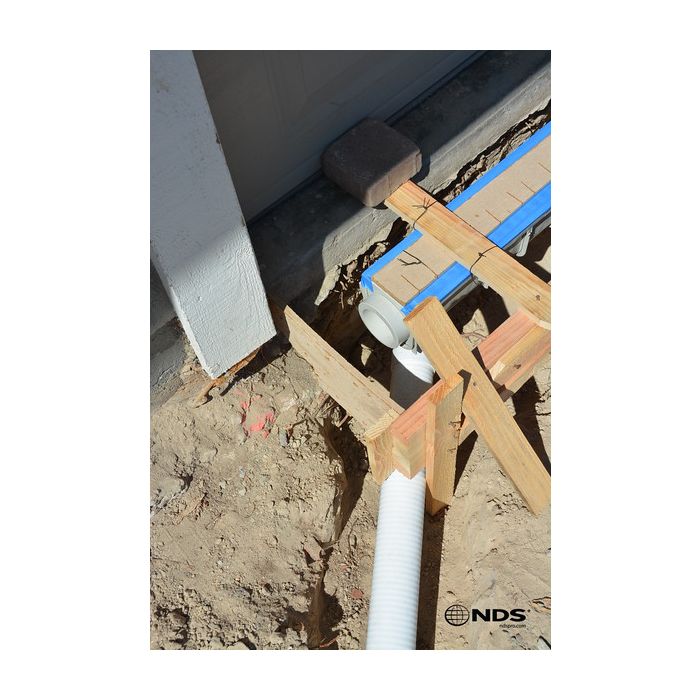

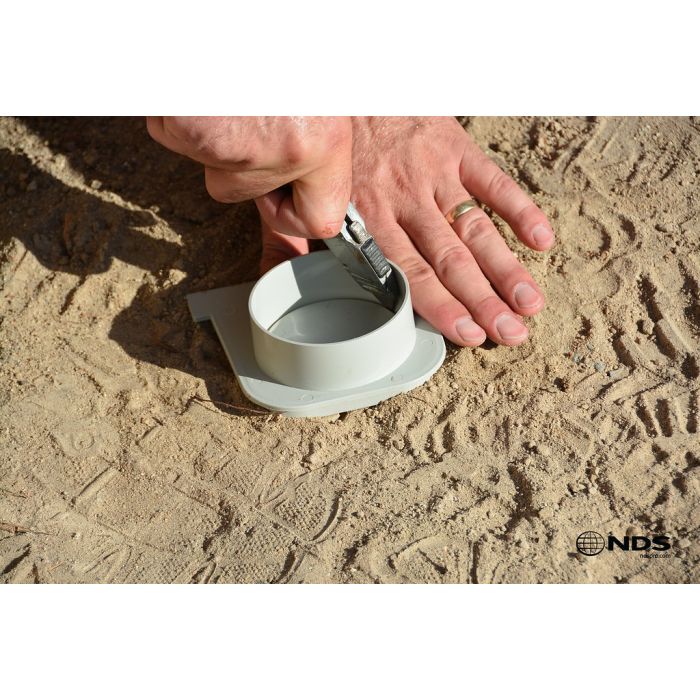

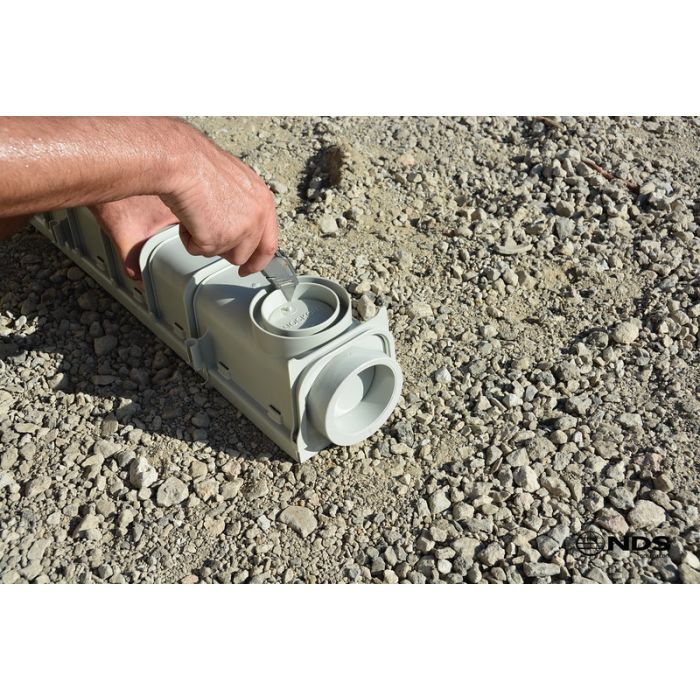

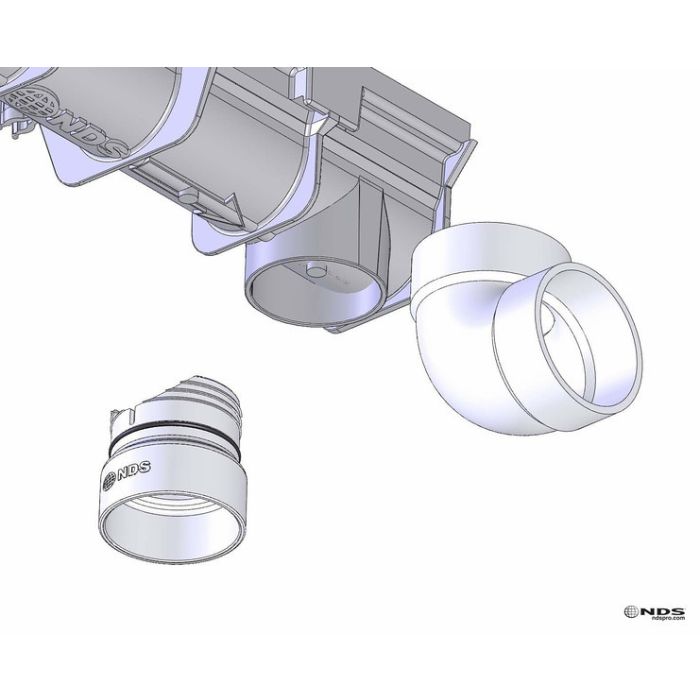

• Knockout bottom outlets fits 3" & 4" Sewer & Drain Fittings
• Channel can be as long as you need, or reduce to lengths as short as 4" for smaller, interlocking sections
• Load Recommendation: Varies on grate selection

Additional Information

Product Installation Instructions

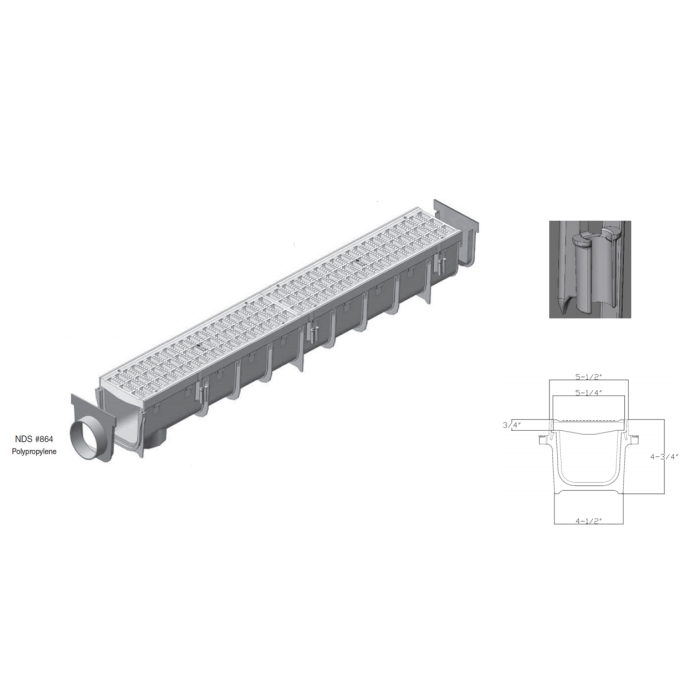

Technical Product Drawings (DWG)
