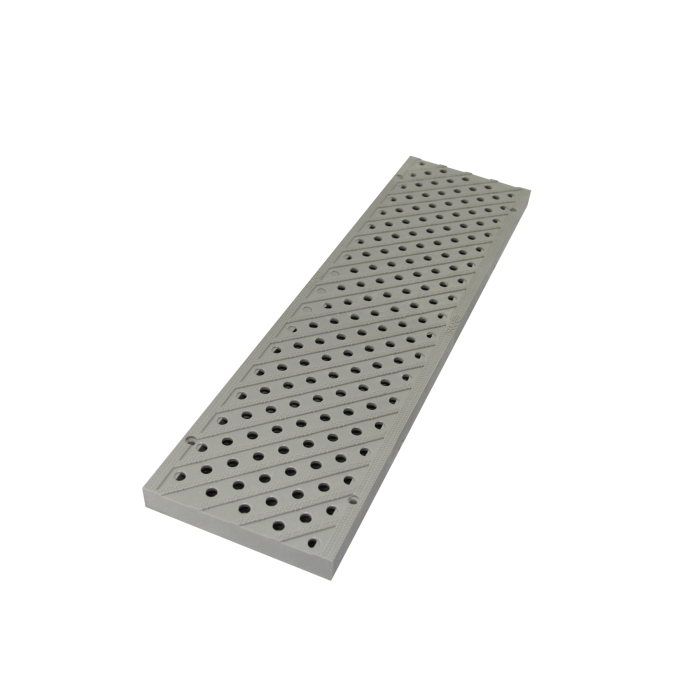

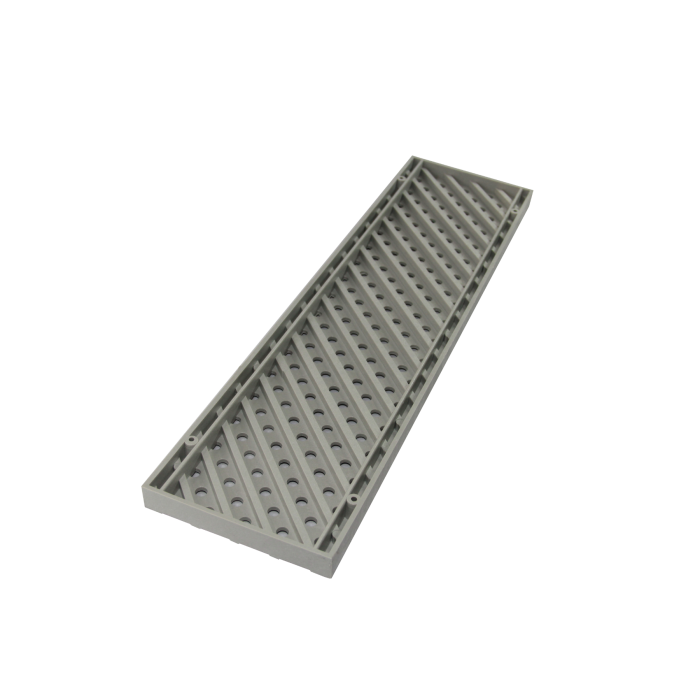

NDS 5" Pro Series Pedestrian Grate

$51.96
In stock
SKU
826

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 5" Pro Series Pedestrian Grate

The NDS 5" Pro Series Channel Grate is the ideal solution for all your drainage needs. The 5" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 5" Pro Series Channel Drain Kit is the perfect solution for all your drainage needs.

Key Insights

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: HDPE (High-Density Polyethylene)
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per grate, screws sold separately)

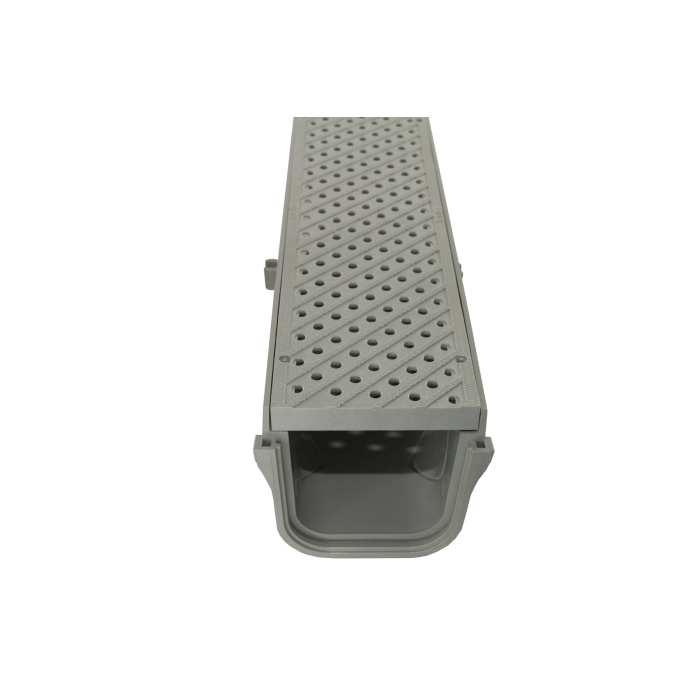

  • Fits: 5” Pro Series Channel, Part# 820 ( takes 1 grate) and Part# 800 ( takes 2 grates)

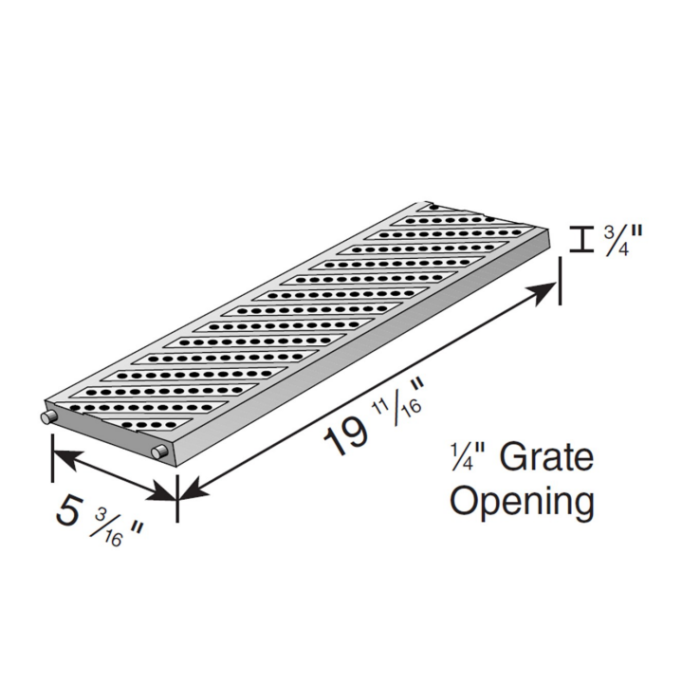

  • Grate Opening: 1/4”
  • Channel grates can be reduced to any lengths
  • Recommended for pedestrian traffic
  • Open Surface Area: 4.86 Sq. Inch per Ft
  • 21.03 GPM per foot
  • Load Recommendation: Class A (0-61 PSI / 3,800 lbs per foot)
