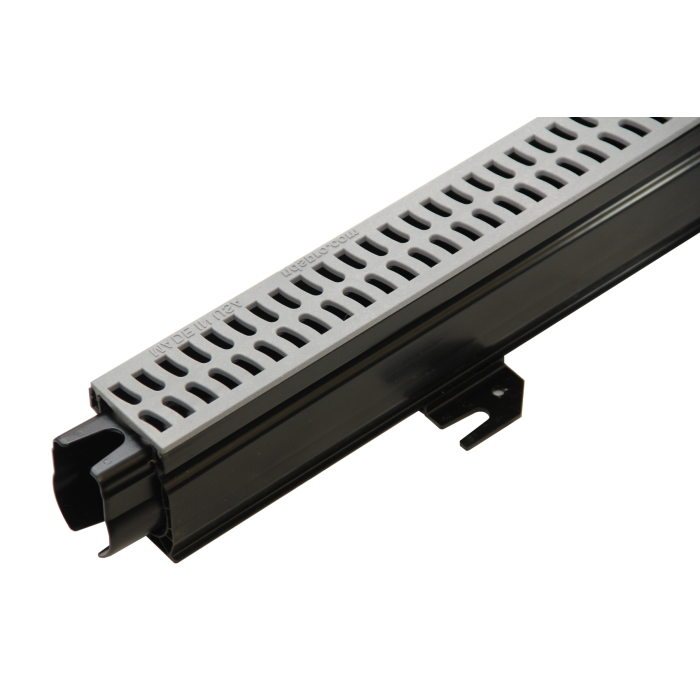

NDS 6' Slim Channel Drain Kit

As low as $54.72
In stock
Only %1 left
SKU
NDS 9206GKIT

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 6' Slim Channel Drain Kit

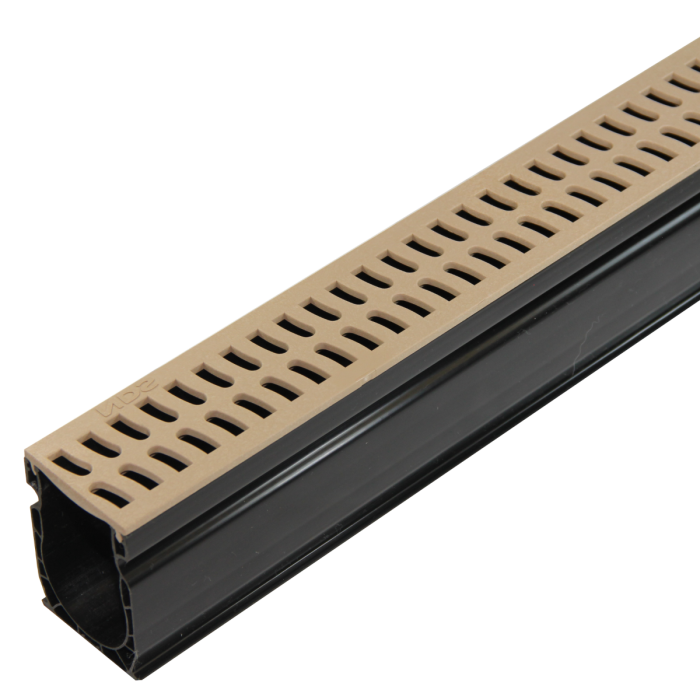

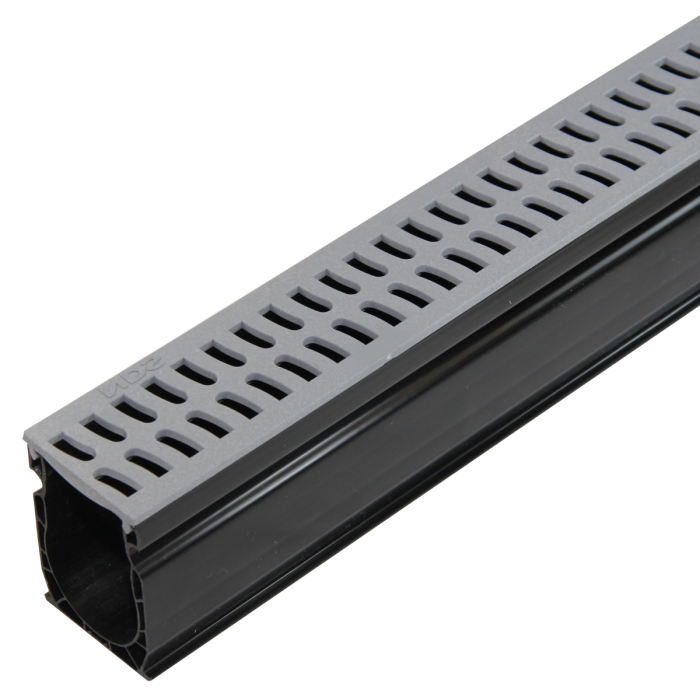

Discover the latest channel drain product from NDS - the Slim Channel drainage series. Combining the best features of the Micro and Mini Channel series, the NDS 6' Slim Channel Drain Kit boasts a sleek design with reduced flying buttress and Micro Channel-inspired internal couplings. Choose from a wide selection of grating options to match your hardscape and enjoy a hassle-free installation with compatibility with Schedule 40 PVC pipe and fittings.

Key Insights

  • Use With NDS Slim Channel Accessories
  • Call In Directly for our NDS 9 FT Slim Channel Drain Pricing

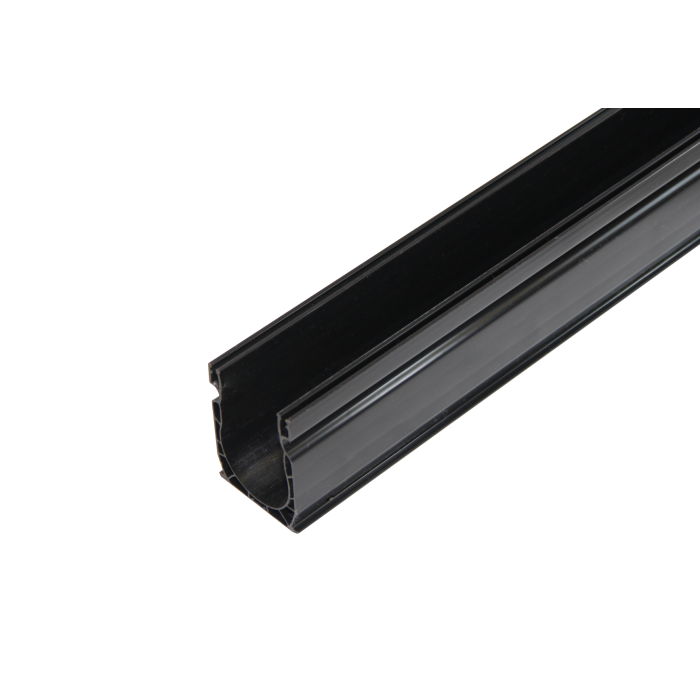

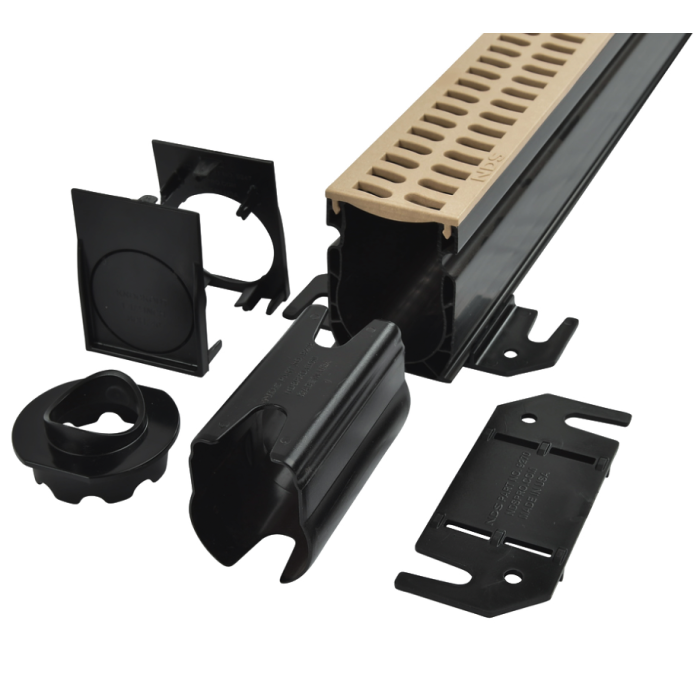

  • Includes 2 Slotted Polypropylene grates NDS Slim Channel Grates , #9206 - 6FT Channel (1 qty.), #9247-End Cap/Outlet (2 qty), #9250- Bottom Outlet (1 qty), #9270- Anchor Clip (2 qty), and #9248- Coupling (1 qty)
  • Snap-in channel grates are removable, making it easy to clean debris from the inside channel for maintenance
  • Flow Capacity: 21.44 GPM / linear foot

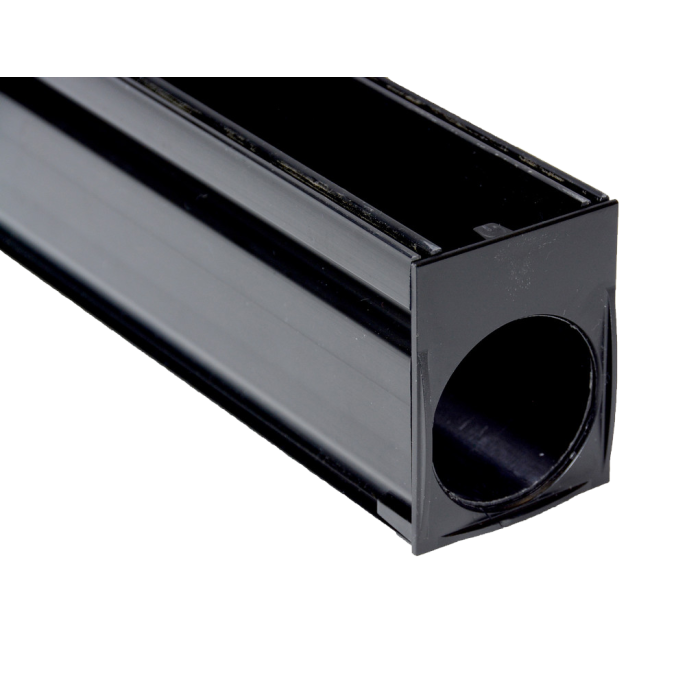

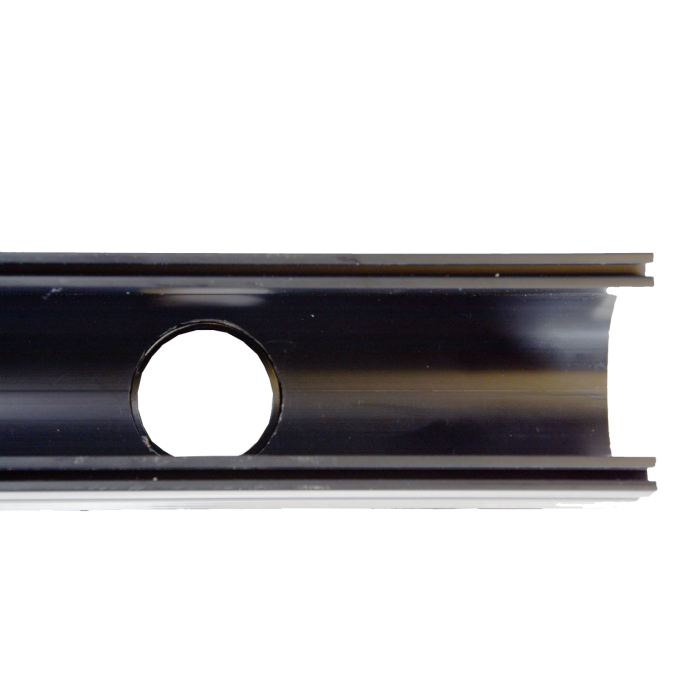

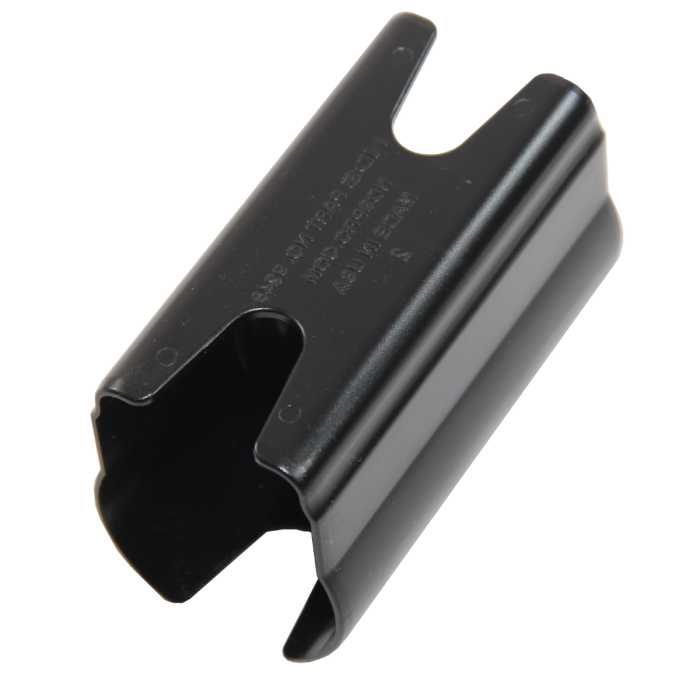

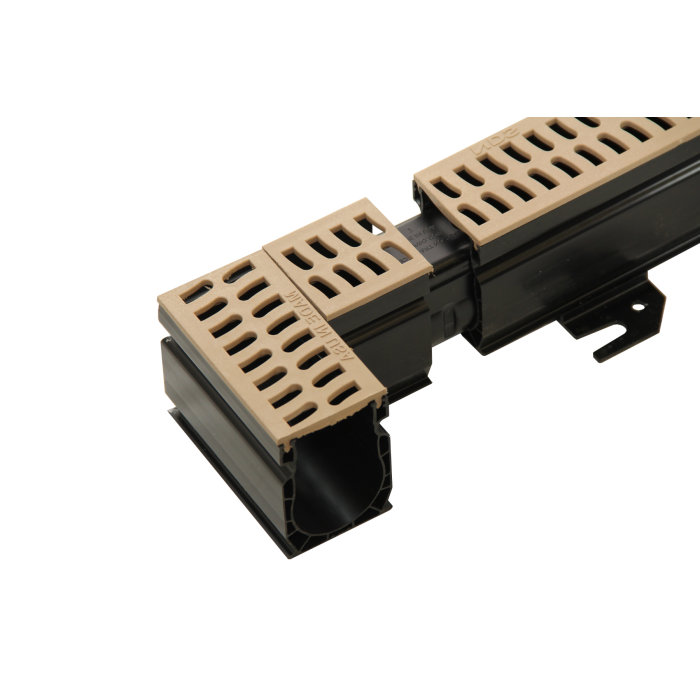

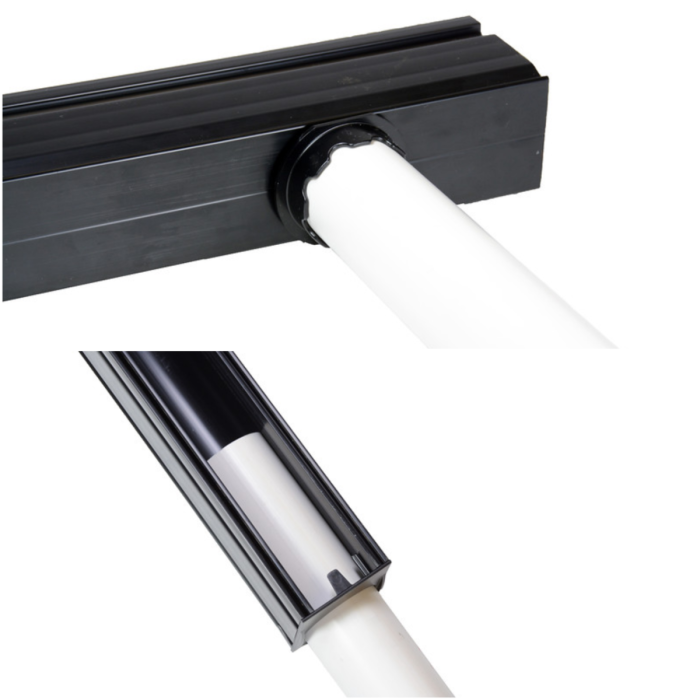

  • The Slim Channel Drains connect securely with internal couplings, and the bottom outlet and end caps with knockout outlets can be attached to 1-1/2" Schedule 40 PVC pipes
  • Secure a watertight connection with PVC glue between the outlet and pipe or between channels. Easy installation is made possible with anchor clips that attach the channel to the base.
  • Dimensions: The NDS Slim Channel Drains measure 2-1/4 inches wide, 3 inches in height, and 6 feet in length. Lengths can be easily customized with a saw
  • ADA Compliant
  • Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)

Shop our entire line of NDS Slim Channel Products
NDS Slim Channel FAQS

Additional Information

NDS Slim Channel Drain Technical Specifications
NDS Slim Channel Grates Technical Specifications
NDS Slim Channel Drainage Accessories Technical Specifications
NDS Slim Channel Fabricated Fittings Technical Specifications
NDS Channel Grates Flow Capacities Table
Principles Of Exterior NDS Drainage

Product Installation Instructions

NDS Slim Channel Drain Slab Installation Instuctions
NDS Slim Channel Pavers Installation Instructions
NDS Slim Channel Landscape Instructions

Technical Product Drawings (DWG)

NDS Slim Channel Drain Slab Installation Instuctions
NDS Slim Channel Pavers Installation Instructions
NDS Slim Channel Landscape Instructions
