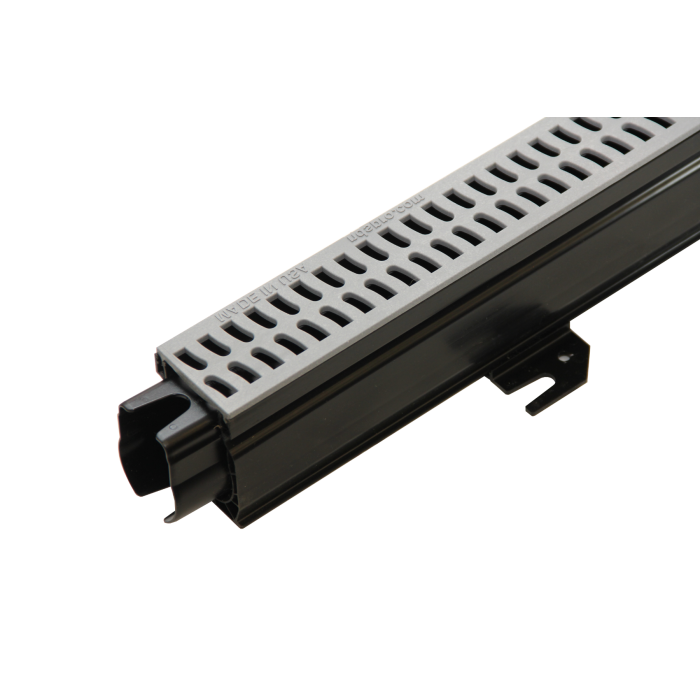

NDS 6' Slim Channel Drain Kit - Gray

Product Details: NDS 6' Slim Channel Drain Kit

Discover the latest channel drain product from NDS - the Slim Channel drainage series. Combining the best features of the Micro and Mini Channel series, the NDS 6' Slim Channel Drain Kit boasts a sleek design with reduced flying buttress and Micro Channel-inspired internal couplings. Choose from a wide selection of grating options to match your hardscape and enjoy a hassle-free installation with compatibility with Schedule 40 PVC pipe and fittings.

Key Insights

• Use With NDS Slim Channel Accessories
• Call In Directly for our NDS 9 FT Slim Channel Drain Pricing
• Includes 2 Slotted Polypropylene grates NDS Slim Channel Grates , #9206 - 6FT Channel (1 qty.), #9247-End Cap/Outlet (2 qty), #9250- Bottom Outlet (1 qty), #9270- Anchor Clip (2 qty), and #9248- Coupling (1 qty)
• Snap-in channel grates are removable, making it easy to clean debris from the inside channel for maintenance
• Flow Capacity: 21.44 GPM / linear foot
• The Slim Channel Drains connect securely with internal couplings, and the bottom outlet and end caps with knockout outlets can be attached to 1-1/2" Schedule 40 PVC pipes
• Secure a watertight connection with PVC glue between the outlet and pipe or between channels. Easy installation is made possible with anchor clips that attach the channel to the base.
• Dimensions: The NDS Slim Channel Drains measure 2-1/4 inches wide, 3 inches in height, and 6 feet in length. Lengths can be easily customized with a saw
• ADA Compliant
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)

Additional Information

Product Installation Instructions

Technical Product Drawings (DWG)
