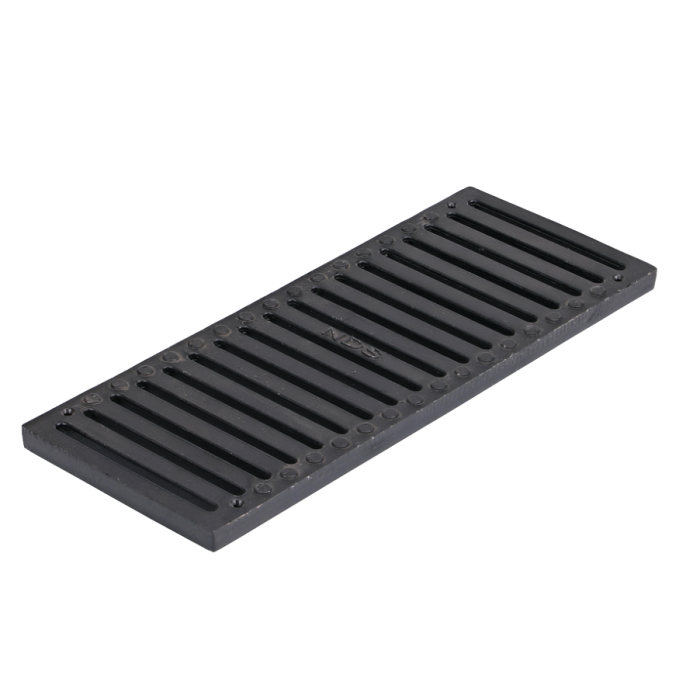

NDS 8" Pro Series Channel Grate - Ductile Iron

$144.46
In stock
SKU
888

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 8" Pro Series Channel Grate - Ductile Iron

The NDS 8" Pro Series Channel Grate - Ductile Iron is the ideal solution for all your drainage needs. The NDS 8" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 8" Pro Series Channel Grate - Ductile Iron is the perfect solution for all your drainage needs.

Key Insights

  • Use With NDS 8" Pro Series Products
  • Material: Ductile Iron

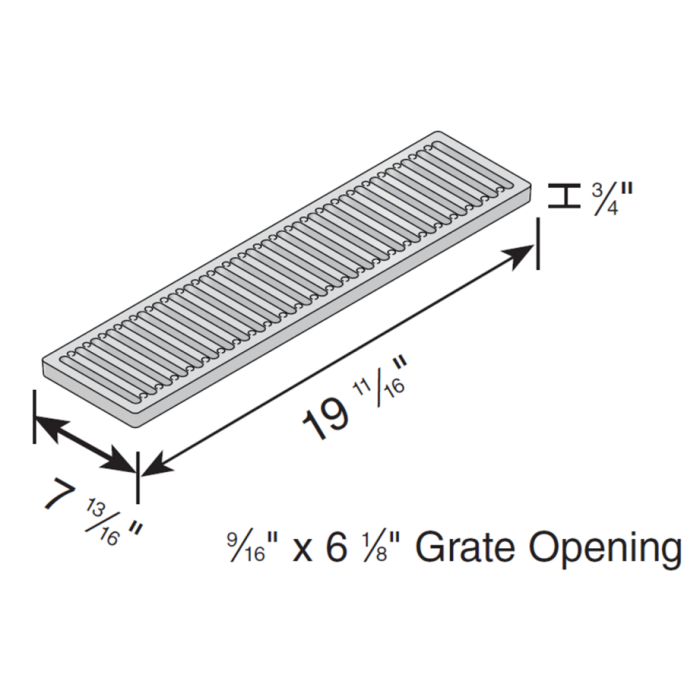

  • Dimensions: 19-11/16" LENGTH x 7-13/16" WIDTH x 3/4" HEIGHT
  • Channel grates can be easily cut to any length
  • ADA Compliant
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per channel grate, screws sold separately)
  • Open Surface Area: 23.30 Sq. Inches Per Foot
  • Grate Opening: 9/16” x 6-1/8”
  • Load Recommendation: Class C (176-325 PSI / 56,200 lbs per foot)
  • H-20 Rated

Shop our entire line of NDS 8" Pro Series Drainage Products

Additional Information

NDS 8" Pro Series Deep Profile Channel Drain Technical Specifications
NDS 8" Pro Series Shallow Profile Channel Grate Technical Specifications
NDS 8" Pro Series Deep Profile End Cap/End Outlet Technical Specifications
NDS 8" Pro Series Shallow Profile Side Outlet Technical Specifications
NDS 8" Pro Series Channel Drain Shallow Profile End Cap / 3" S&D SPT Knockout End Outlet Technical Specifications
NDS 8" Pro Series Channel Grate - Pedestrian Traffic Technical Specifications
NDS 8" Pro Series Channel Grate Technical Specifications
NDS Heavy Traffic 8" Pro Series Channel Grate Technical Specifications
NDS 8" Pro Series Channel Grate - Ductile Iron Technical Specifications
NDS Channel Grates Flow Capacities Table
Principles Of Exterior NDS Drainage
How Do I Choose The Right Channel Drain For My Drainage System? Video

Product Installation Instructions

NDS Channel Drain Installation Guide

Technical Product Drawings (DWG)

NDS 8" Pro Series Plumbing Connection to 3-inch End Outlet Installation Details
