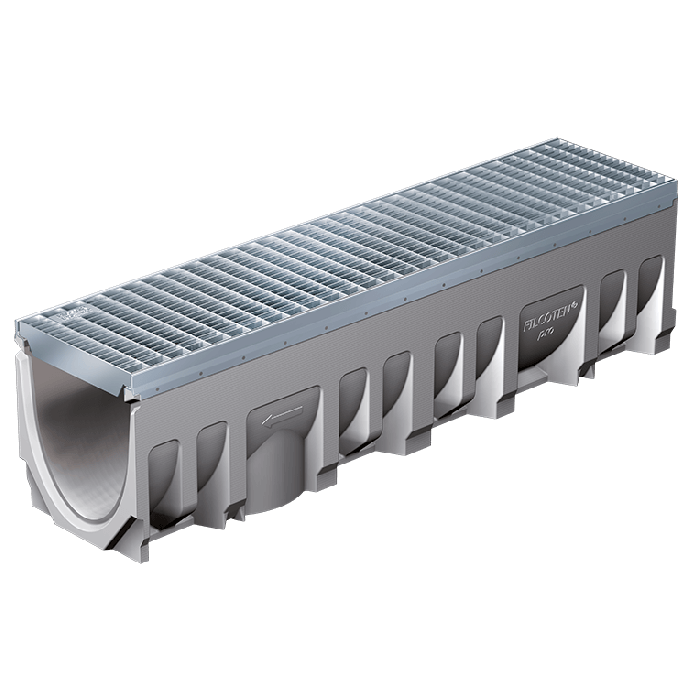

Product Details: NDS FILCOTEN TEC V 200 Trench Drain
The FILCOTEN trench drain system by NDS stands apart as an innovative solution for capturing and conveying stormwater in commercial applications. Its channel sections are made from cutting-edge high-performance fiber-reinforced concrete, making FILCOTEN channel drains stronger and more durable than any other trench drain system on the market. This fiber-reinforced concrete is 100% recyclable and free of harmful substances and is able to withstand extreme temperatures and UV exposure without any damage. Additionally, its high fiber density allows FILCOTEN to support heavy loads and withstand impacts, making it the ideal choice for any project
At Drain Exchange, we are proud to offer the complete line of NDS FILCOTEN products, including the versatile FILCOTEN Tec V 200 channel line in both pre-sloped and neutral sections. For projects requiring large water management, we recommend using either the FILCOTEN Pro V 300 drainage series. NDS FILCOTEN's unique combination of strength, durability, and versatility make it the ultimate choice for stormwater management
Versatility with NDS FILCOTEN Trench Drains
- Commercial Applications: High-performance fiber-reinforced concrete withstands heavy foot traffic and daily wear and tear
- Industrial Projects: Durable design and impact resistance make NDS FILCOTEN ideal for all industrial projects
- Garages/Parking Lots: Easy to install and maintain, preventing damage to vehicles and infrastructure
- Residential Developments: Ensure homes and residential properties to stay safe and dry
Key Insights
- Rail Material: Galvanized Steel
- ADA Compliant
- Used for capturing and redirecting excess water to safe locations
- Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
- Dimensions: 39.37" LENGTH x 9.37" WIDTH x 10.43" to 12.40" INNER DEPTH HEIGHT
- Load Recommendation: Varies on grate selection (Up to Class E)
- Material: High-Performance Fiber Reinforced Concrete
- Slope: 0.5% per sloped channel drain
- Connection size: 8" diameter sized pipe
- The longest sloped channel run with a catch basin in the middle can reach a distance of 135 linear feet
- The maximum run length with all sloped channel drains, one neutral-slope channel drain, and a central catch basin is 162 linear feet
- 100% recyclable/ 0% harmful substances. Sustainable solution without VOCs or heavy-metal residue that can leach into the ground. Qualifies for LEED credits
- Connection Features: Bottom outlets are eligible to be included on every channel drain section
- The inclusion of a sealant groove in this drainage system allows for a watertight connection between channels, enhancing the system's overall effectiveness in preventing water leakage
- Connection to Grating: NDS 4-point locking system with Vandal Lock is available
