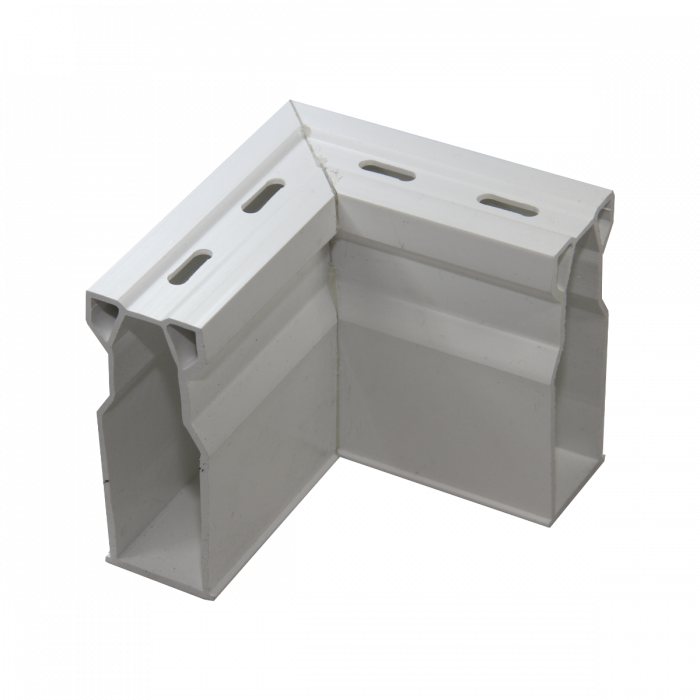

NDS Micro Channel 90-Degree Elbow

Product Details: NDS Micro Channel 90-Degree Elbow

NDS Micro Channel 90-Degree Elbow is an efficient solution for removing water from hardscapes and directing it away from building structures. This product is ideal for residential projects. It is a cost-effective alternative to the NDS Mini and Slim Channel and is suitable for light-duty applications such as pools, patios, and spas. The NDS Micro Channel 90-Degree Elbow provides a connection at a 90-Degree angle for other NDS Micro Channel components. As part of the NDS Micro Channel Drainage Series, it is a durable and stylish option for managing moderate drainage water. Upgrade your outdoor space with the NDS Micro Channel Drainage system for reliable and effective water management.

Key Insights

• Use With NDS Micro Channel Products
• To be connected together to other accessories the Micro Channel Couplings (NDS Part #8481) will be required
• Load Recommendation: Class A (01-60 PSI / 3,800 lbs per foot)
• PVC glue can be used to glue all components together
• Provides a connection at a 90-Degree angle for other NDS Micro Channel components

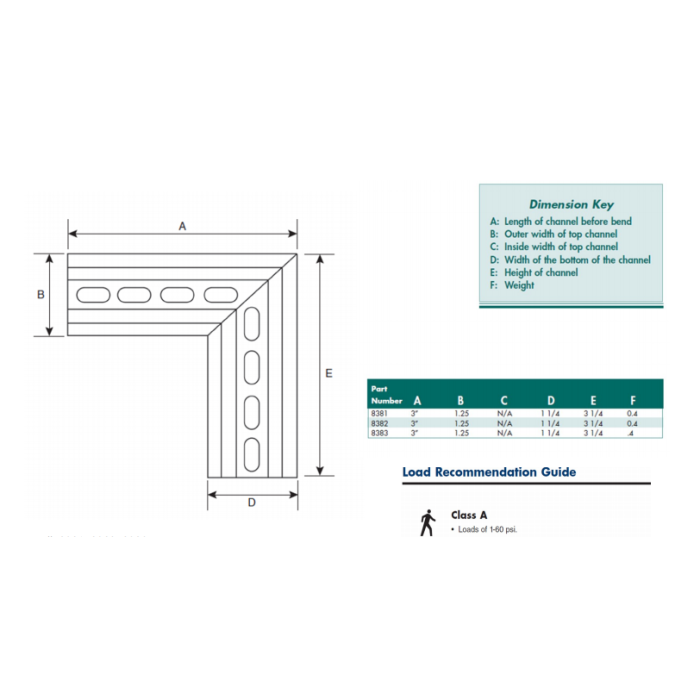

• Dimensions: 3" LENGTH x 1-1/4" WIDTH
• ADA Compliant
• Material: UV Protected High-Density Polyethylene (HDPE)

Shop our entire line of NDS Micro Channel Products

Additional Information

Product Installation Instructions
