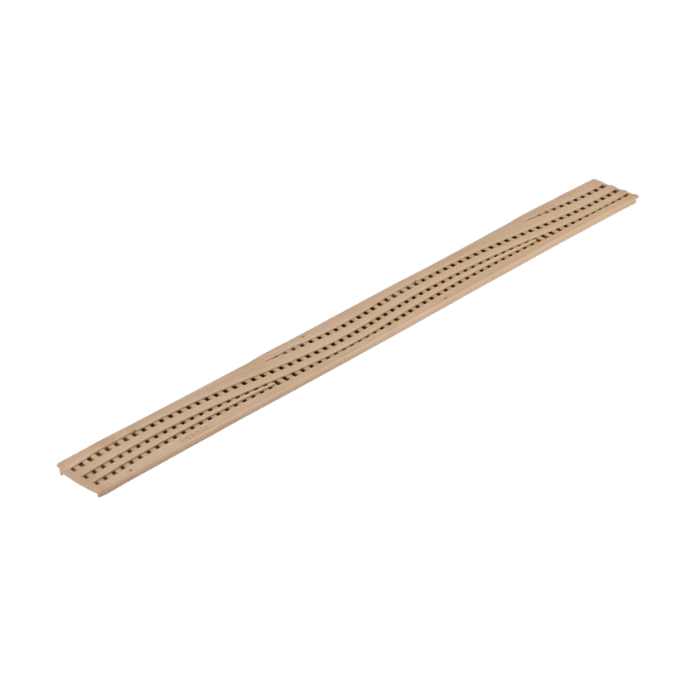

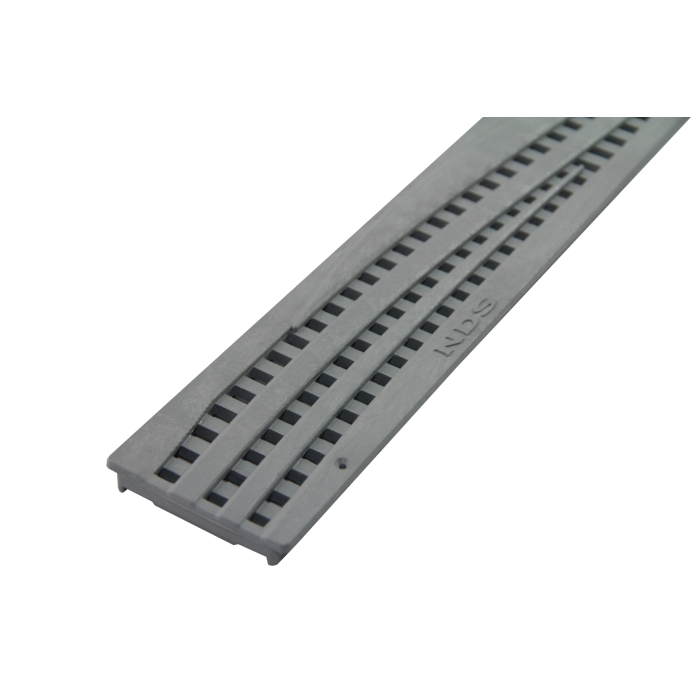

NDS Mini Channel Decorative Wave Grate

$21.98
In stock
Only %1 left
SKU
NDS 555

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Mini Channel Decorative Wave Grate

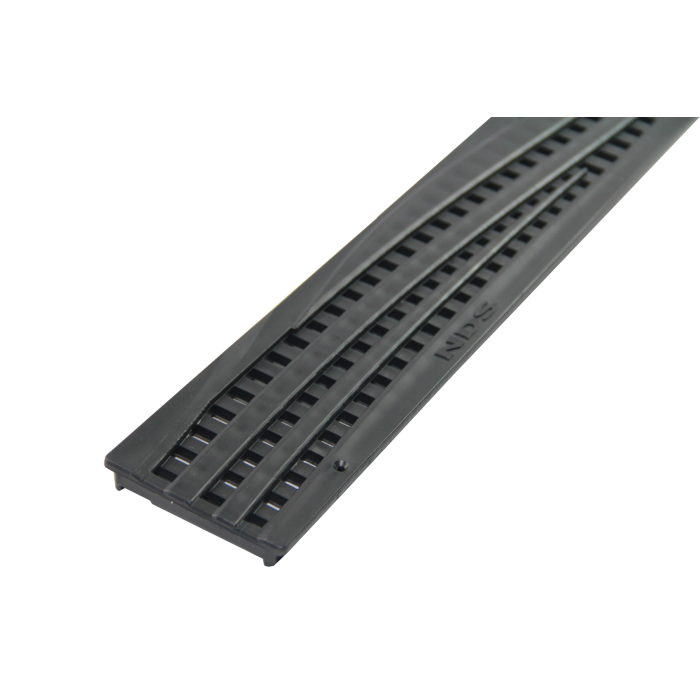

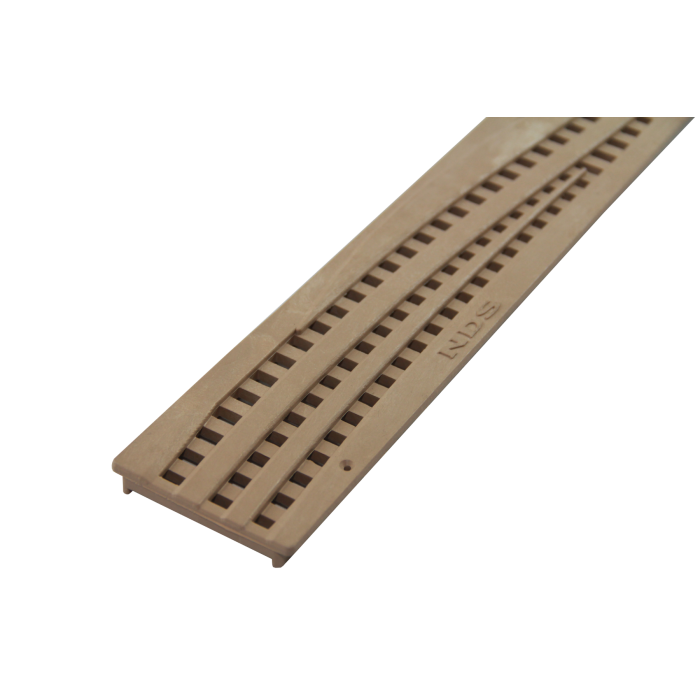

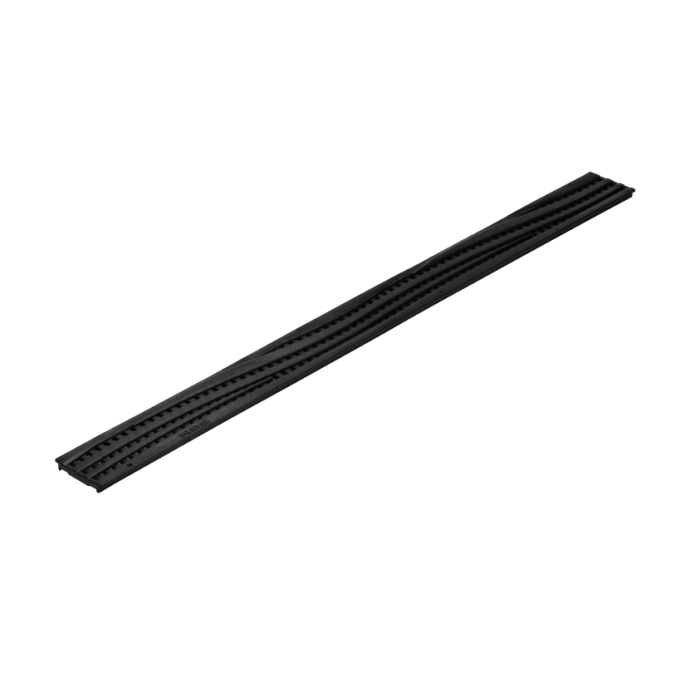

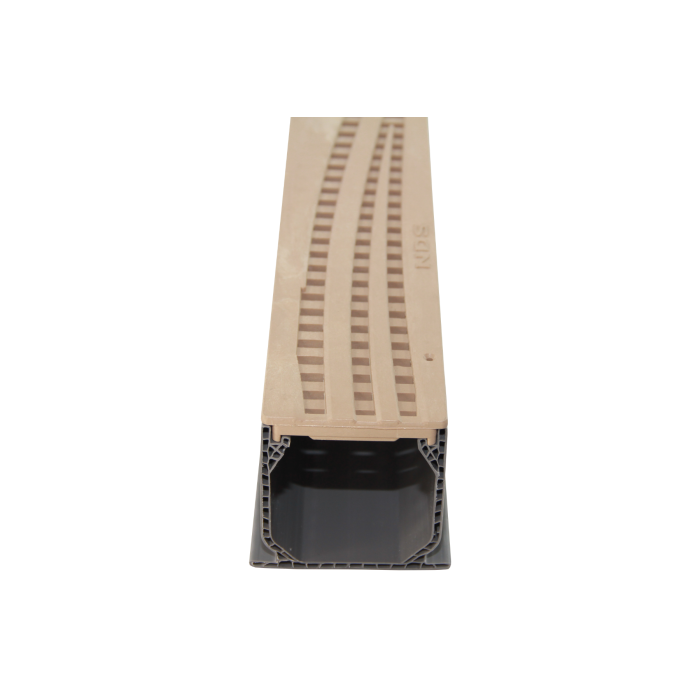

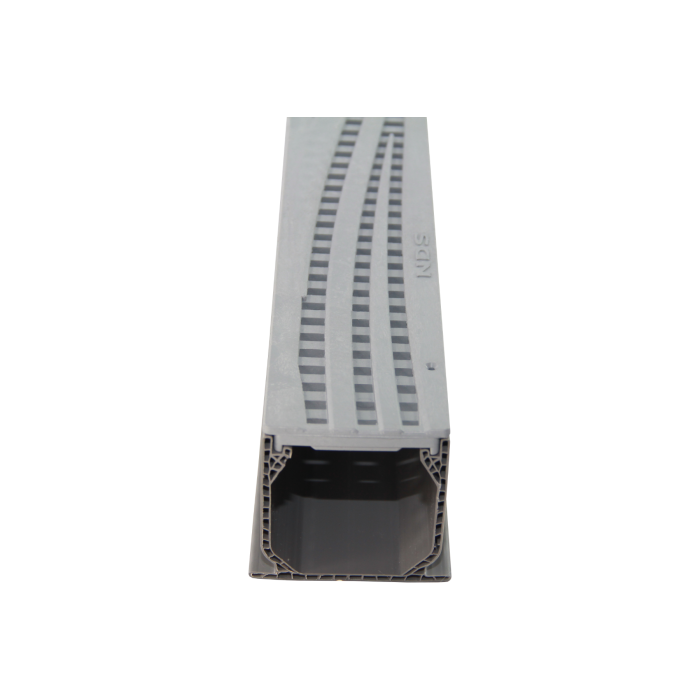

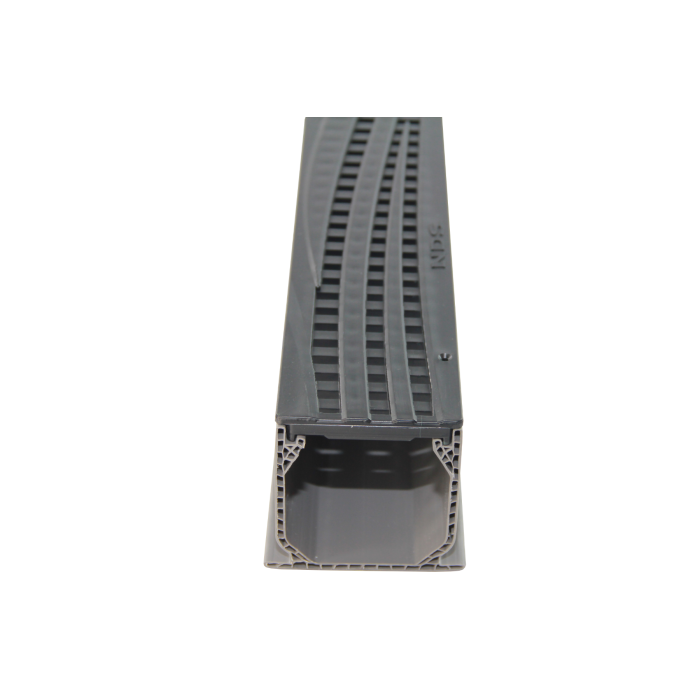

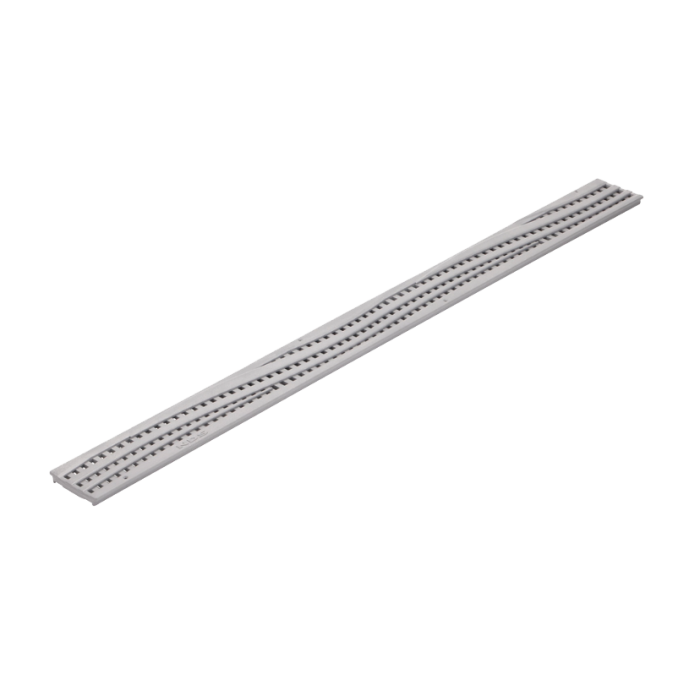

NDS Mini Channel Decorative Wave Grates are a crucial part of the NDS Mini Channel drainage system. Mini Channel grates are designed to match any hardscape and come in four colors: Black (#555), Grey (#555GY), Green (#555GR), and Sand/Tan (#555S). The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel Decorative Wave Grates, protecting your investment with high-quality, easily configurable drainage is simple and stylish.

Key Insights

  • Use With NDS Mini Channel Drain (#500)

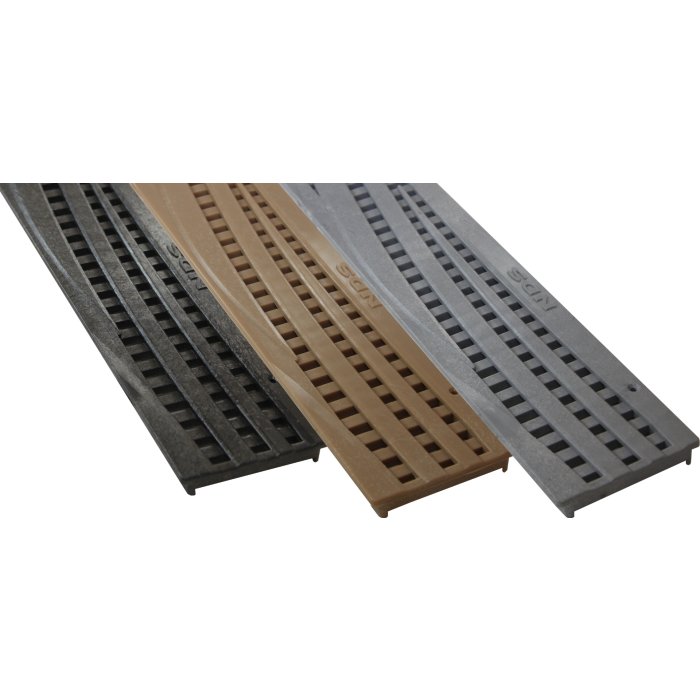

  • Color Choices: Black (#555), Grey (#555GY), Green (#555GR), and Sand/Tan (#555S)
  • 17.20" Sq. Open Space

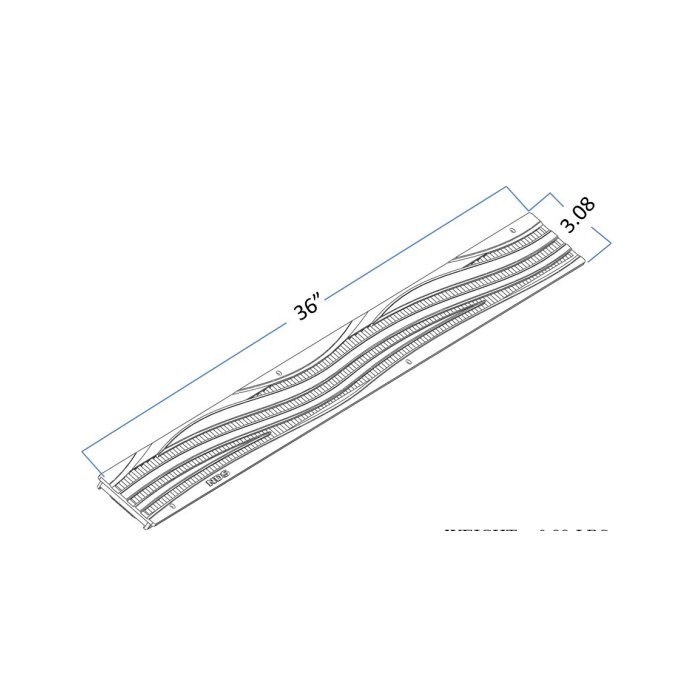

  • Dimensions: 36" LENGTH x 3.08" WIDTH
  • Will accommodate 52.62 gallons per minute per foot with 1/2” of head
  • ADA Compliant
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (4 per grate, screws sold separately)
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)
