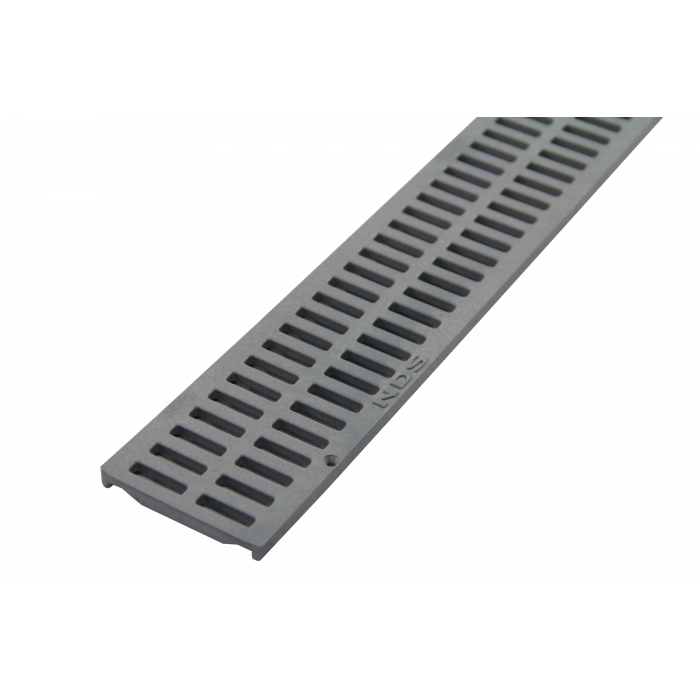

NDS Mini Channel Grate - Gray

Product Details: NDS Mini Channel Grate

NDS Mini Channel grates are a crucial part of the NDS Mini Channel drainage system. Mini Channel grates are designed to match any hardscape and come in six colors: White (#540), Grey (#541), Green (#542), Sand/Tan (#544), Red (#551), and Black (#543). The channel grates fit securely into the channel drain (#500) via four stainless steel screws. Mini channel grates collect and remove excess water from outdoor areas, including driveways and patios, and are durable enough for light vehicular traffic. They are UV-resistant, chemical-resistant, rustproof, maintenance-free, lightweight, and easy to install. With NDS Mini Channel, protecting your investment with high-quality, easily configurable drainage is simple and stylish.

Key Insights

• Use With NDS Mini Channel Drain (#500)
• Color Choices: White (#540), Gray (#541), Green (#542), Black (#543), Sand (#544), and Brick Red (#551)
• 1/4" x 5/16" Grate Opening
• Dimensions: 36" LENGTH x 2.75" WIDTH
• Will accommodate 30.29 gallons per minute per foot with 1/2” of head
• ADA Compliant

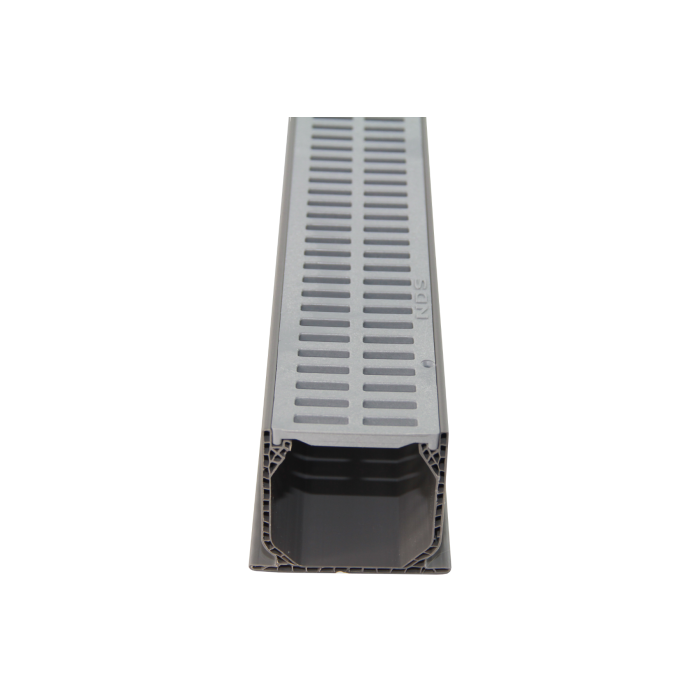

• Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #4 x 5/8” screws (4 per grate, screws sold separately)
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)

Additional Information

Product Installation Instructions

Technical Product Drawings (DWG)
