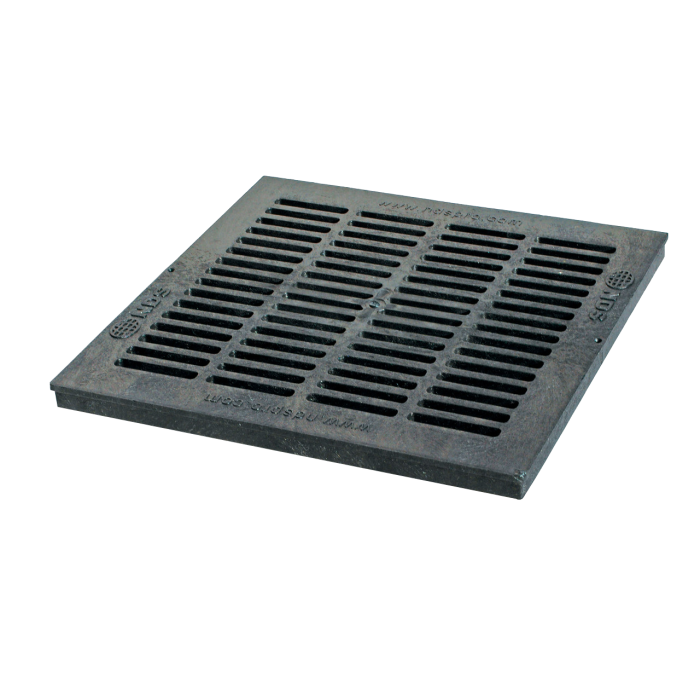

NDS 18" Square Catch Basin Grate - Black

Product Details: NDS 18" Square Catch Basin Grate

The NDS 18" Square Catch Basin Grate is a vital part of the NDS drainage system. This product is designed to effectively manage excess surface water from lawns, landscapes, residential driveways, and garages. Made to withstand regular use in both landscaping and hardscaping projects, this kit is durable and built to last. The NDS 18" Square Catch Basin Grate helps prevent the clogging of pipelines by collecting debris and other particles, ensuring the proper flow of water. Grates are customizable, with a variety of patterns and colors to choose from, allowing for seamless integration into your surroundings. Whether you're looking to manage water buildup in common areas or divert water away from structures, erosion-prone landscapes, or areas with poor drainage, the NDS 18" Square Catch Basin Grate has you covered.

Key Insights

• Dimensions: 16-7/8" LENGTH x 16-7/8" WIDTH x 1" HEIGHT
• Colors: #1810 (Gray), #1811 (Black) and #1812 (Green)
• ADA Compliant
• Open Surface Area: 86.31 Sq. Inches
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• Material:(HDPE) High Density Polypropylene
• Suitable for medium-duty tire traffic when properly installed
• Grate Openings: 7/16"
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Use with NDS 18" Catch Basin products (#1882, #1884, #1800, #1804, #1816, #1830 and #1840)
• Used for capturing and redirecting excess water to safe locations
• Will accommodate: 264.06 gallons per minute with 1/2” of head
